STHU32N65DM6AG - Power MOSFET from STMicroelectronics

The STHU32N65DM6AG is a high-performance power MOSFET manufactured by STMicroelectronics, designed to meet the demanding requirements of modern electronic applications. This device is part of STMicroelectronics' MDmesh™ DM6 series, which features advanced technology for extremely low on-resistance and high dv/dt capability.

With a voltage rating of 650V, the STHU32N65DM6AG is well-suited for high-voltage applications, ensuring robust performance even under stressful conditions. Its maximum continuous drain current is rated at 22A, making it capable of handling significant power without overheating, thanks to its excellent thermal characteristics.

The STHU32N65DM6AG boasts an ultra-low gate charge (Qg), which translates into reduced switching losses and improved overall efficiency. This feature is particularly beneficial in applications such as switch-mode power supplies, lighting, welding, and solar inverters, where energy efficiency is paramount.

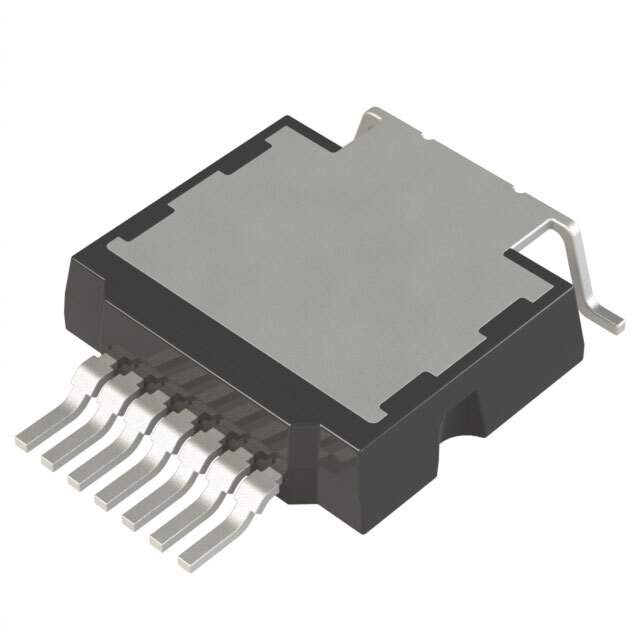

This MOSFET's package is the HU3PAK, which provides a compact footprint while allowing for good heat dissipation. The package is designed to be robust and to ensure a low thermal resistance between the junction and the case, further aiding in maintaining a low operating temperature.

One of the standout features of the STHU32N65DM6AG is its fast body diode, which is optimized for minimal reverse recovery time (trr) and reverse recovery charge (Qrr). This characteristic is essential for high-frequency applications, as it helps to minimize losses during the diode's commutation phase.

STMicroelectronics has also integrated Zener-protected gate technology into this MOSFET, which enhances its robustness against electrostatic discharge (ESD) and makes it less vulnerable to gate oxide stress under abnormal operating conditions.

In conclusion, the STHU32N65DM6AG is a state-of-the-art power MOSFET that offers a combination of high efficiency, reliability, and performance. Its advanced features make it an excellent choice for designers looking to improve the power management and efficiency of their high-voltage systems.
