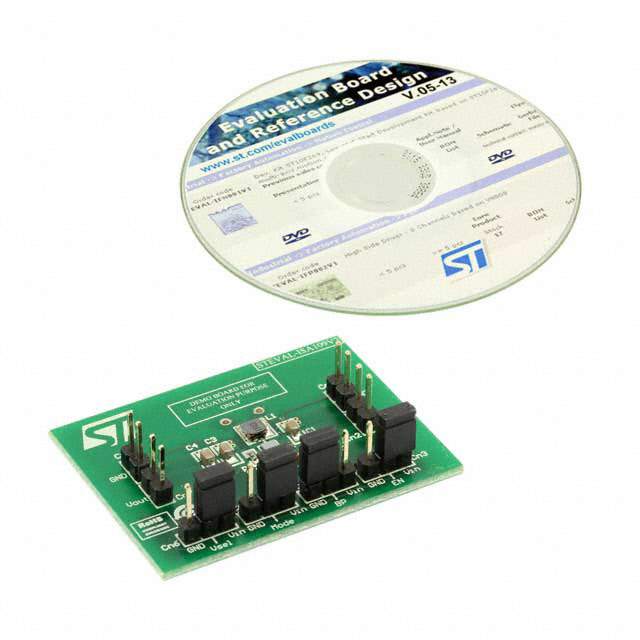

STEVAL-ISA109V2 - STMicroelectronics Evaluation Board

The STEVAL-ISA109V2 from STMicroelectronics is a cutting-edge evaluation board designed for those seeking to explore the capabilities of the L7986A, a highly efficient DC-DC converter. This evaluation board is an essential tool for engineers, developers, and hobbyists aiming to test and prototype power supply solutions that require a step-down voltage regulator.

The L7986A is a step-down switching regulator capable of delivering up to 3 A of continuous current to the load with excellent line and load regulation. The input voltage range is quite flexible, from 4.5 V to 38 V, making the STEVAL-ISA109V2 suitable for a variety of applications, including industrial, consumer, and computer peripheral devices.

One of the key features of the STEVAL-ISA109V2 is its adjustable output voltage, which can be set from 0.8 V to the input voltage value, ensuring versatility for different design requirements. The board comes with a preset output voltage of 3.3 V, but this can be easily adjusted as needed. The high switching frequency, up to 1 MHz, allows the use of small surface-mount inductors and capacitors, thereby reducing the overall size and enhancing the power density of the application.

The evaluation board also includes a range of protection features to ensure the longevity and reliability of the application. These include overcurrent protection, thermal shutdown, and a programmable soft-start function that prevents inrush current at startup.

For ease of monitoring and testing, the STEVAL-ISA109V2 is equipped with test points that provide convenient access to critical signals and voltages. It also features jumper connectors for enabling or disabling the synchronization function and for setting the device's soft-start time.

In summary, the STEVAL-ISA109V2 evaluation board is an excellent platform for experimenting with and implementing power solutions using the L7986A DC-DC converter. Its flexibility, efficiency, and comprehensive feature set make it an indispensable tool for developing robust power supply designs.
