Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Power Integrations
Series InnoSwitch-EP
Main Purpose AC/DC, Primary and Secondary Side
Outputs and Type 2, Isolated
Power - Output 20W
Voltage - Output 5V, 12V
Output Current 1.5A, 500mA
Voltage - Input 85 ~ 264 VAC
Regulator Topology Flyback
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part INN2605K
Win Source Part Number 776809-RDK-469
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RDK-469 CAD Model

Description

The Power Integrations 776809-RDK-469 is a fully populated development board kit that utilizes the INN2605K IC/part.

  • Series: InnoSwitch-EP
  • Topology: Flyback regulator
  • Outputs: 2 isolated
  • Voltage Output: 5V and 12V
  • Output Current: 1.5A and 500mA
  • Compatibility: AC/DC
  • Power Output: 20W
  • Popularity: Medium

You May Also Be Interested in

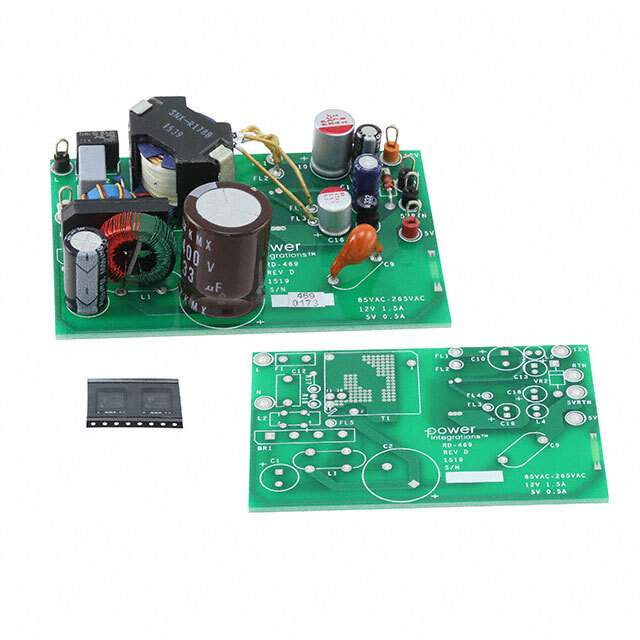

RDK-469 Real Image
RDK-469
Power Integrations
KIT REF DESIGN INN2605K
