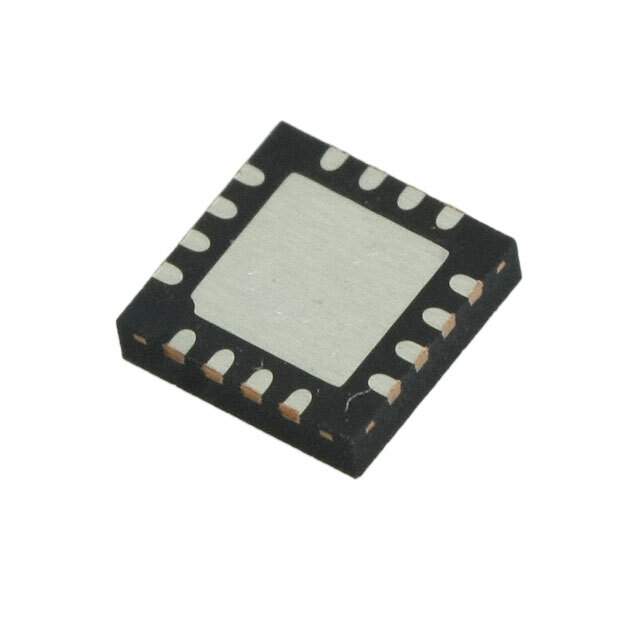

Product Overview: M41T83ZQA6F from STMicroelectronics

The M41T83ZQA6F is a high-quality, low-power serial real-time clock (RTC) with a built-in 32.768 kHz oscillator from STMicroelectronics. This precision timekeeping device is designed to provide accurate time and date information over a wide temperature range, making it an ideal component for industrial and consumer applications that require reliable timekeeping capabilities.

One of the key features of the M41T83ZQA6F is its integrated crystal, which eliminates the need for external timing components and simplifies the design process. This RTC also includes a variety of timekeeping functions such as a calendar, alarm, and programmable square-wave output. The calendar function is accurate up to the year 2099 and includes corrections for leap years. The alarm function can be set to trigger on a specific date, day of the month, hour, minute, or second, providing flexibility for various application needs.

The M41T83ZQA6F operates on a low voltage supply in the range of 1.8V to 5.5V, making it suitable for battery-powered devices. Its low power consumption ensures minimal impact on battery life. The device also features a serial I2C interface for communication, allowing for easy integration with microcontrollers and other digital systems.

Additionally, this RTC includes a programmable clock output that can be used for peripheral device clocking or as a system wake-up signal. It also has a built-in automatic battery switch-over function that ensures uninterrupted timekeeping in the event of a power failure. This is particularly important in applications where maintaining accurate time is critical, such as data logging systems and electronic meters.

The M41T83ZQA6F is housed in an 8-pin SOP (Small Outline Package) that is RoHS compliant and is designed for surface mount technology, providing a compact footprint for space-constrained applications. With its robust feature set and reliability, the M41T83ZQA6F RTC from STMicroelectronics is an excellent choice for designers looking to incorporate accurate timekeeping functions into their projects.
