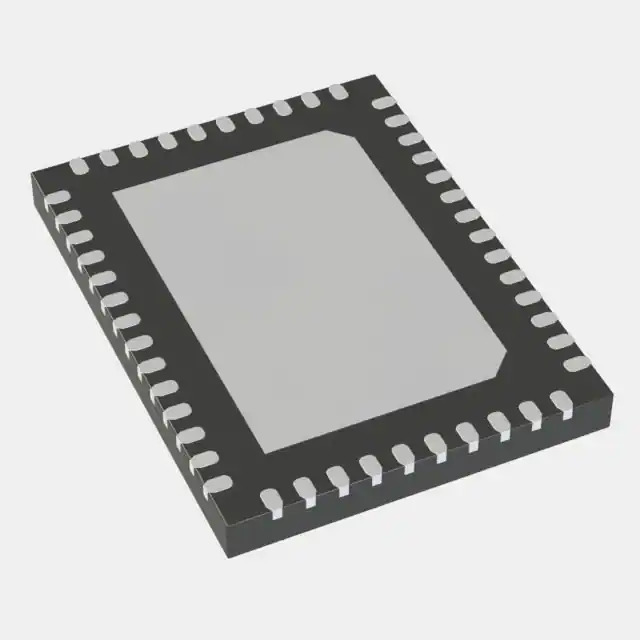

The IPS2050HQ is a state-of-the-art high-side intelligent power switch (IPS) designed and manufactured by STMicroelectronics, a global semiconductor leader. This device is tailored for driving resistive, capacitive, and inductive loads, making it an ideal solution for a wide range of industrial and automotive applications.

The IPS2050HQ is built using ST’s proprietary VIPower technology, ensuring robust performance and reliability. With its integrated vertical current flow power MOSFET and intelligent features, this power switch offers a compact solution that minimizes the need for external components and simplifies circuit design.

Key Features:

• High Voltage Capability: The device is capable of handling high voltage operations efficiently, which makes it suitable for 12V, 24V, and even higher voltage systems.
• Overload and Short Circuit Protection: The IPS2050HQ is equipped with self-protecting features that guard the device and the load against overload, short-circuit, and over-temperature conditions.
• Diagnostic Feedback: It includes diagnostic functions that provide feedback on load status, open-load detection in off-state, and loss of ground and supply protections, enabling predictive maintenance and system reliability.
• Current Limitation: The device offers a precise current limitation to protect the power switch from excessive currents that could lead to damage.
• Thermal Shutdown: With a built-in thermal shutdown feature, the IPS2050HQ prevents thermal runaway and ensures the device operates within safe temperature limits.

Applications:

Due to its robust design and versatile features, the IPS2050HQ is well-suited for a variety of applications, including but not limited to:

• Automotive systems such as body controllers and lighting modules
• Industrial automation systems
• Smart home and building automation
• Protection and control of power distribution systems

In summary, the IPS2050HQ from STMicroelectronics is a powerful and intelligent solution for driving and protecting loads in complex and demanding environments. Its combination of high-side switch functionality, diagnostic capabilities, and protective features make it an indispensable component in modern electronic systems.
