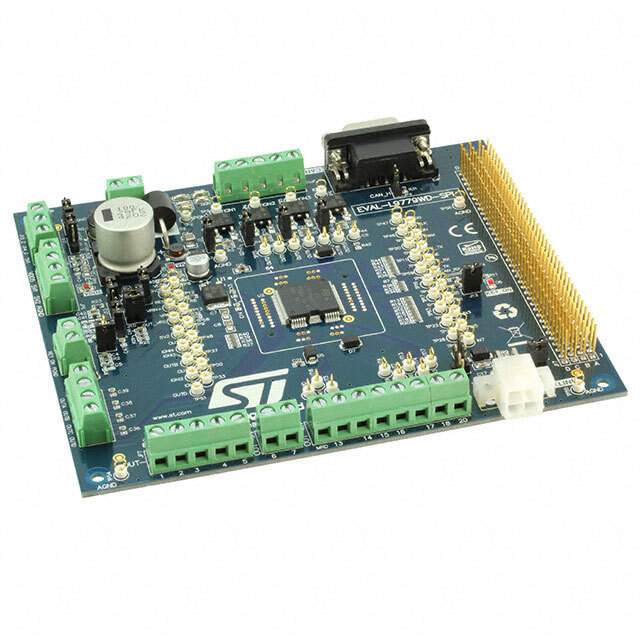

EVAL-L9779WD-SPI: An Advanced Diagnostic System IC Evaluation Board from STMicroelectronics

The EVAL-L9779WD-SPI is a state-of-the-art evaluation board designed by STMicroelectronics specifically for the L9779WD-SPI, a diagnostic system IC intended for automotive applications. This evaluation board serves as a comprehensive platform for automotive developers and engineers to test features, develop applications, and expedite the design process when integrating the L9779WD-SPI IC into vehicle diagnostic systems.

At the heart of the EVAL-L9779WD-SPI is the L9779WD-SPI diagnostic system IC, which is a multifunctional interface designed to connect the vehicle's electronic control unit (ECU) with a diagnostic tool or tester. It supports various communication protocols such as ISO 9141, K and L lines, and CAN, making it versatile for diverse automotive diagnostic requirements.

The evaluation board showcases the robust capabilities of the L9779WD-SPI, including its SPI interface for communication with the host microcontroller, and its ability to manage multiple communication channels simultaneously. It also features a voltage regulator, a line driver, and a CAN transceiver, providing all the necessary components for a comprehensive diagnostic system.

One of the key benefits of the EVAL-L9779WD-SPI is its ease of use. The board is equipped with user-friendly interfaces and connectors, allowing for straightforward connection to a host microcontroller and other peripherals. It also includes various test points and LEDs for real-time monitoring and debugging of signal integrity and communication protocols.

Engineers can take advantage of the provided software package, which includes a graphical user interface (GUI) for configuring the L9779WD-SPI IC. This software facilitates a seamless evaluation experience, enabling quick adjustments and the ability to observe the effects of configuration changes in real-time.

In sum, the EVAL-L9779WD-SPI is an invaluable tool for professionals in the automotive industry who require a reliable and efficient way to evaluate the L9779WD-SPI diagnostic system IC. With its comprehensive features and user-friendly design, this evaluation board is an essential asset for accelerating the development of advanced vehicle diagnostic systems.
