ECMF06-6AM16 by STMicroelectronics

The ECMF06-6AM16 is a cutting-edge integrated circuit designed by STMicroelectronics, a leader in the semiconductor industry. This component is specifically engineered to provide robust protection for high-speed interfaces against Electrostatic Discharge (ESD) and Electromagnetic Interferences (EMI), which are common issues in electronic devices.

At the heart of the ECMF06-6AM16 is its Common Mode Filter with ESD protection, which is essential for preserving the integrity of high-speed data lines. The device is particularly suitable for applications involving USB 3.1 Gen 1, HDMI, MIPI, and other interfaces that require both high data rates and immunity to external disturbances.

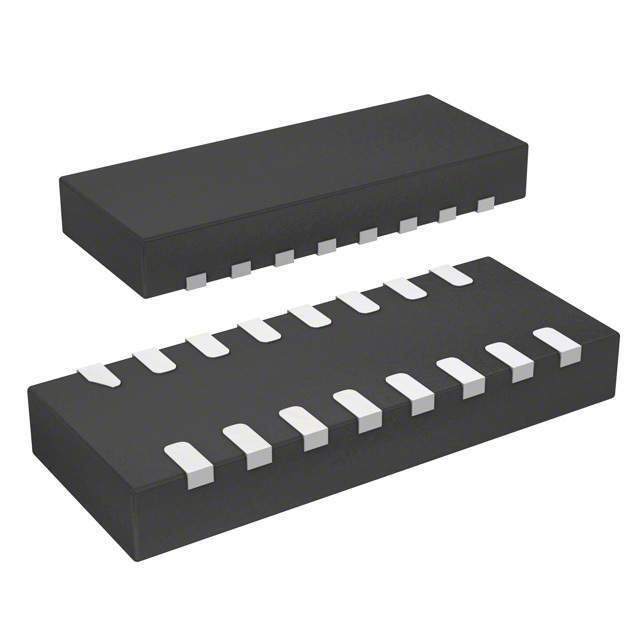

The ECMF06-6AM16 is housed in a compact micro-QFN package, which is designed to minimize the footprint on the PCB and is ideal for space-constrained applications. Despite its small size, it does not compromise on performance, offering a low PCB space consumption while maintaining excellent filtering capabilities.

Key features of the ECMF06-6AM16 include:

• High ESD protection level, up to 15 kV contact discharge as per the IEC61000-4-2 standard, ensuring that the device can withstand common ESD events without damage.
• Very low PCB space consumption, thanks to its micro-QFN-16 package, which measures just 2.6 x 1.8 mm.
• High cutoff frequency, which is essential for maintaining signal integrity in high-speed data lines.
• Low insertion loss, ensuring that the signal quality remains high through the filter.
• Large bandwidth, which is compatible with high-speed differential signals such as USB 3.1 Gen 1, which operates at 5 Gbps.

With its combination of ESD protection and EMI filtering, the ECMF06-6AM16 is an ideal choice for designers looking to enhance the reliability and performance of their high-speed data interfaces. It is particularly well-suited for consumer electronics, mobile devices, and any other applications where space is at a premium and protection from electrical disturbances is required.

STMicroelectronics' commitment to quality and reliability is reflected in the ECMF06-6AM16, making it a smart choice for safeguarding sensitive electronic components against the rigors of everyday use and the demands of high-speed data communication.
