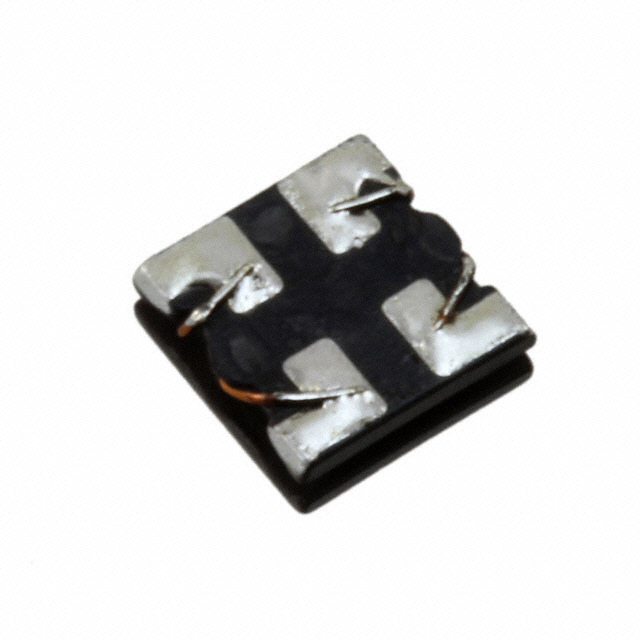

DR221-223AE

Part No DR221-223AE
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 22 µH @ 10 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 230mOhm
Voltage Rating - DC 50V
Voltage Rating - AC 100V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max) 0.130" (3.30mm)
Case / Package Horizontal, 4 Flat Lead
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530525-DR221-223AE
Ultra Librarian 3D Model Ultra Librarian DR221-223AE CAD Model

Description

N
