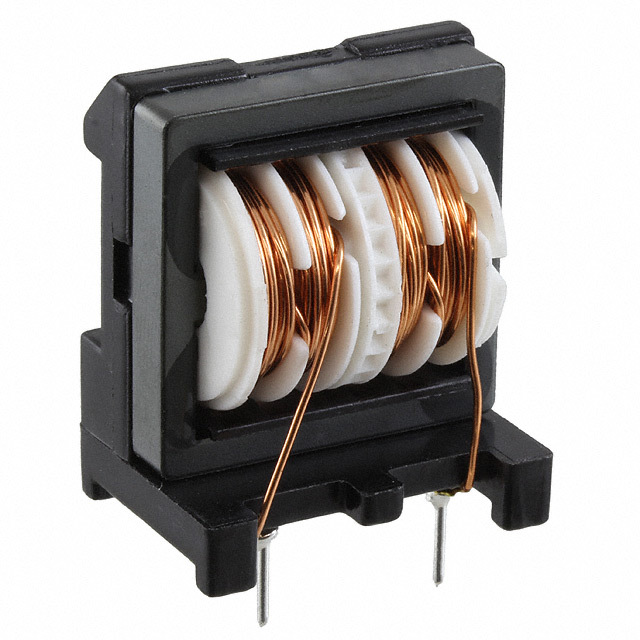

SS21V-100098 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SS21V-100098

Part No SS21V-100098
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 9.8MH 1A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9.8 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 600mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 0.965" (24.50mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530641-SS21V-100098
Ultra Librarian 3D Model Ultra Librarian SS21V-100098 CAD Model

Description

N
