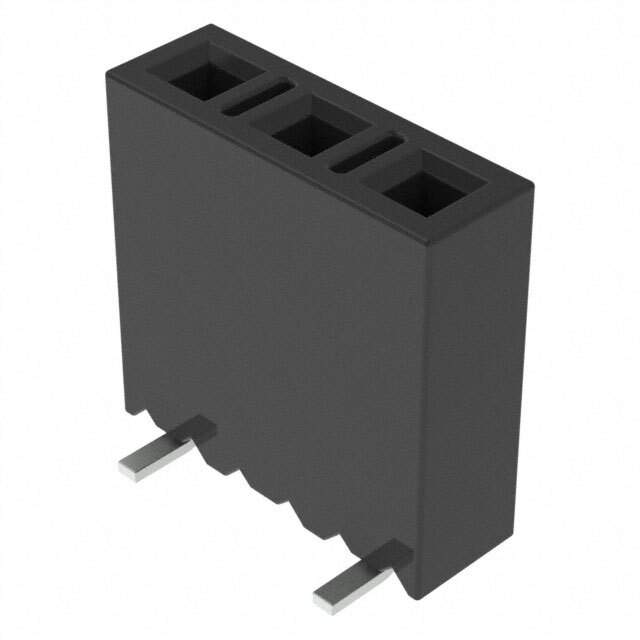

SSM-103-L-SV Real Image
Same model may have multiple batches, images only for reference.

SSM-103-L-SV

Part No SSM-103-L-SV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-103-L-SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tube
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-103
Other Names SAM1148-03
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291787-SSM-103-L-SV
Ultra Librarian 3D Model Ultra Librarian SSM-103-L-SV CAD Model

Description

The SSM series female socket connector is a receptacle, pass-through type connector with 3 positions loaded, designed for board to board or cable style connections.

  • Fastening Type: Push-pull
  • Termination: Solder
  • Contact Material: Phosphor bronze
  • Voltage Rating: 405VAC and 572VDC
  • Insulation Material: Liquid crystal polymer (LCP)
  • Contact Finish on Mating: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish on Post: Tin
  • Color: Black
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5.2A per contact
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Manufacturer: Samtec Inc.
  • Other Names: SAM1148-03
