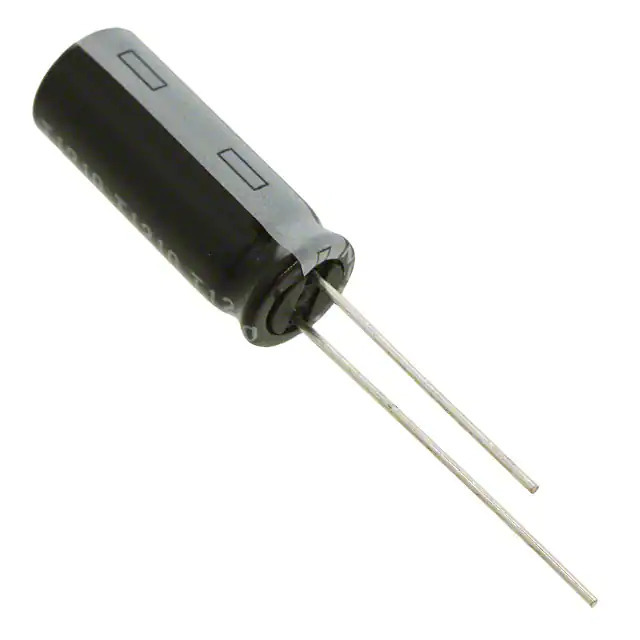

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 430.5 mA @ 120 Hz
Impedance 120 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358136-63ZLH150MEFC8X20
Ultra Librarian 3D Model Ultra Librarian 63ZLH150MEFC8X20 CAD Model

Description

The Rubycon ZLH series capacitors are aluminum electrolytic capacitors with a capacitance of 150 µF and a voltage rating of 63 V.

  • Capacitance: 150 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 430.5 mA @ 120 Hz
  • Lead Spacing: 0.138" (3.50mm)
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Mounting Type: Through Hole
  • Height: 0.866" (22.00mm)
  • Lifetime: 8000 Hours @ 105°C
  • Polarization: Polarized
  • Impedance: 120 mOhms
  • Manufacturer: Rubycon
  • Packaging: Bulk
  • Status: Active
  • REACH: Unaffected
