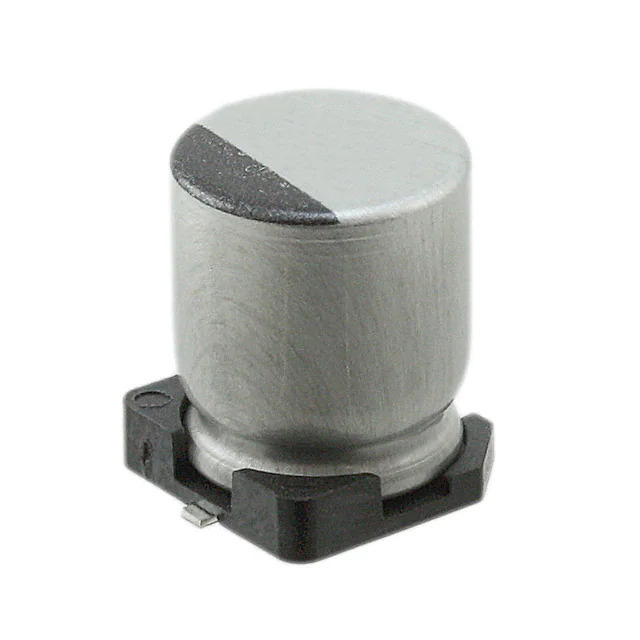

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 96 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance 340 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360352-35TZV47M6.3X8
Ultra Librarian 3D Model Ultra Librarian 35TZV47M6.3X8 CAD Model

Description

The 1360352-35TZV47M6.3X8 is a radial, surface mount aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: TZV
  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Voltage - Rated: 35 V
  • Impedance: 340 mOhms
  • Applications: Automotive
  • Ripple Current @ Low Frequency: 96 mA @ 120 Hz
  • Ripple Current @ High Frequency: 300 mA @ 100 kHz
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.315" (8.00mm)
  • Packaging: Tape & Reel (TR)
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Ratings: AEC-Q200
  • RoHS Status: RoHS Compliant
  • REACH Status: REACH unaffected
  • Polarization: Polar
