LTC1485IS8: A Robust Differential Bus Transceiver

The LTC1485IS8 is a high-speed differential bus transceiver designed by Linear Technology, now part of Analog Devices, to provide reliable data communications on balanced transmission lines. It is specifically engineered to operate in conjunction with industry-standard RS485 and RS422 protocols. This versatile transceiver is an ideal component for networked control systems, data acquisition units, and multi-point data transmission applications where noise immunity and high data integrity are paramount.

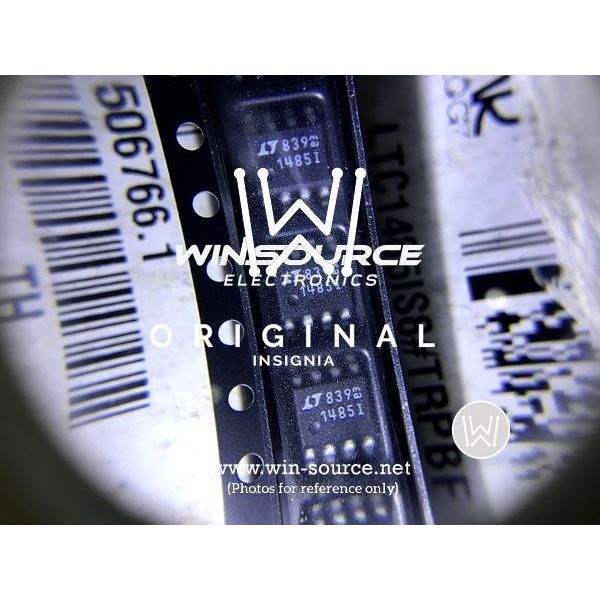

The LTC1485IS8 comes in a compact 8-lead SOIC package, designed to save space on printed circuit boards while delivering high-performance communication capabilities. It operates over a wide supply voltage range of 4.75V to 5.25V, which allows for flexibility in various system designs. The device features a pin-compatible footprint, making it easy to incorporate into existing designs or for use in new projects.

One of the standout features of the LTC1485IS8 is its enhanced ESD protection, which can withstand up to ±15kV, ensuring robust performance even in harsh industrial environments. This level of protection helps to safeguard the transceiver from the potential damages caused by electrostatic discharge, thus enhancing the longevity and reliability of the communication system.

With the ability to handle up to 32 devices on the bus, the LTC1485IS8 is suitable for creating complex networks. Its differential output drivers deliver high-speed data transmission rates of up to 2.5Mbps, making it suitable for applications that require fast and accurate data transfer. Additionally, the device features thermal shutdown protection, which prevents damage from overheating, and a failsafe receiver that ensures a logic high R output if the input is open or shorted.

The LTC1485IS8 also boasts a low quiescent current, which is ideal for power-sensitive applications. Its half-duplex configuration allows for bidirectional communication over a single pair of wires, simplifying network topology and reducing cabling costs.

In summary, the LTC1485IS8 differential bus transceiver is a high-quality, reliable solution for any application requiring robust data communication over long distances and in electrically noisy environments. Its combination of speed, power efficiency, and enhanced protection features make it a top choice for designers seeking to optimize their industrial communication systems.
