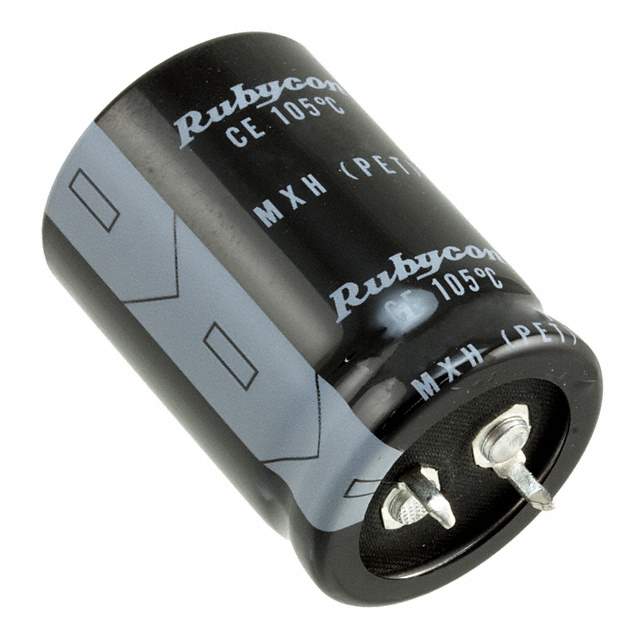

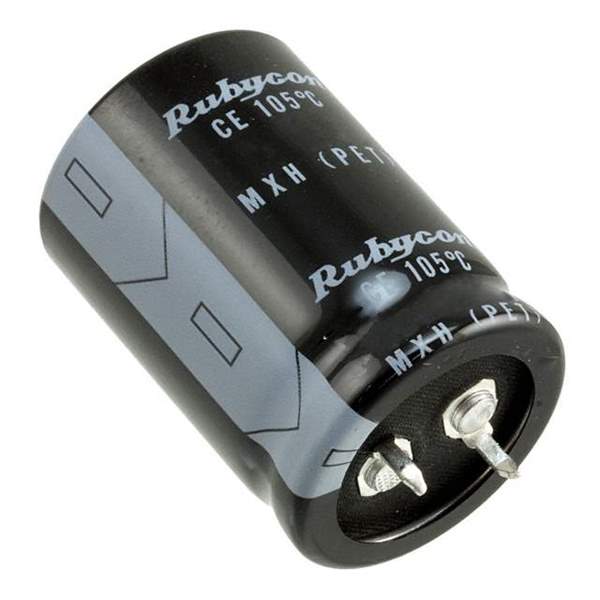

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXH
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.37 A @ 120 Hz
Ripple Current @ High Frequency 1.918 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1339298-450MXH220MEFCSN25X35
Ultra Librarian 3D Model Ultra Librarian 450MXH220MEFCSN25X35 CAD Model

Description

The MXH series capacitors are aluminum electrolytic capacitors that are perfect for general purpose applications from Rubycon.

  • Series: MXH
  • Capacitance: 220 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Mounting Type: Through-Hole
  • Package: Radial, Can-Snap-In
  • Size/Dimension: 0.984" Dia (25.00mm)
  • Height-Seated (max): 1.457" (37.00mm)
  • Ripple Current (Low Frequency): 1.37 A @ 120 Hz
  • Ripple Current (High Frequency): 1.918 A @ 10 kHz
  • Lifetime: 2000 Hrs @ 105°C
  • Temperature Range: -25°C to 105°C
