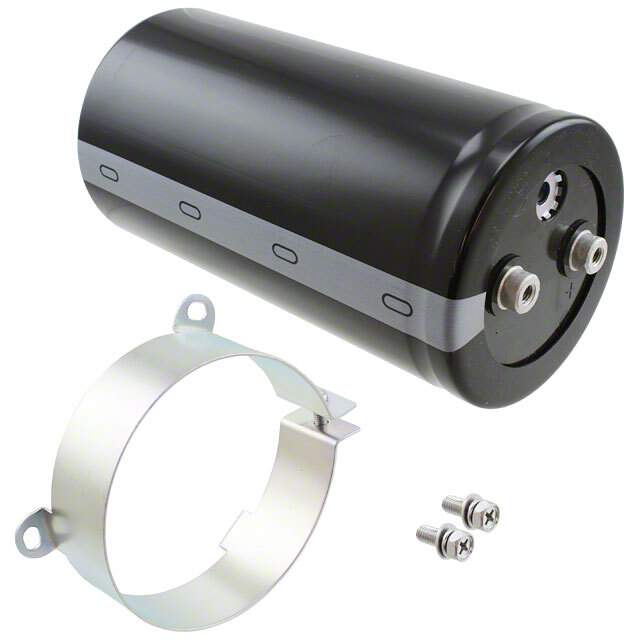

Same model may have multiple batches, images only for reference.

LNC2W682MSEH

Name: LNC2W682MSEH
Brand: Nichicon
SKU: 796208
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LNC2W682MSEH
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 6800UF 20% 450V SCREW / Cap Aluminum Lytic 6800uF 450V 20% (76.2 X 145mm) Bracket Mount Screw Terminal 23800mA 5000h 85°C Bulk
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	LNC
Packaging	Bulk
Capacitance	6800μF
Tolerance	±20%
Voltage Rating DC	450V
Lifetime @ Temp.	5000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	23.8A @ 120Hz
Ripple Current - High Frequency	33.32A @ 10kHz
Lead Spacing	1.252" (31.80mm)
Dimension	3.000" Dia (76.20mm)
Height - Seated (Maximum)	5.827" (148.00mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	796208-LNC2W682MSEH
Popularity	Medium
Supply and Demand Status	Limited
Family Name	NC
Introduction Date	August 24, 2010
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian LNC2W682MSEH CAD Model

Description

The Nichicon LNC2W682MSEH is an aluminum electrolytic capacitor.

Capacitance: 6800μF
Voltage Rating: 450V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 0
Series: LNC
Applications: General
Packaging: Bulk
Package/Case: Radial, Can - Screw Terminals
Lifetime: 5000 Hrs @ 85°C
Ripple Current: 23.8A @ 120Hz, 33.32A @ 10kHz
Dimension: 3.000" Dia (76.20mm)
Height Seated: 5.827" (148.00mm)
Lead Spacing: 1.252" (31.80mm)
Operating Temperature: -40°C ~ 85°C
Alternative Parts: LNC2W682MTEHBN, LNC2W682MTEHBB
