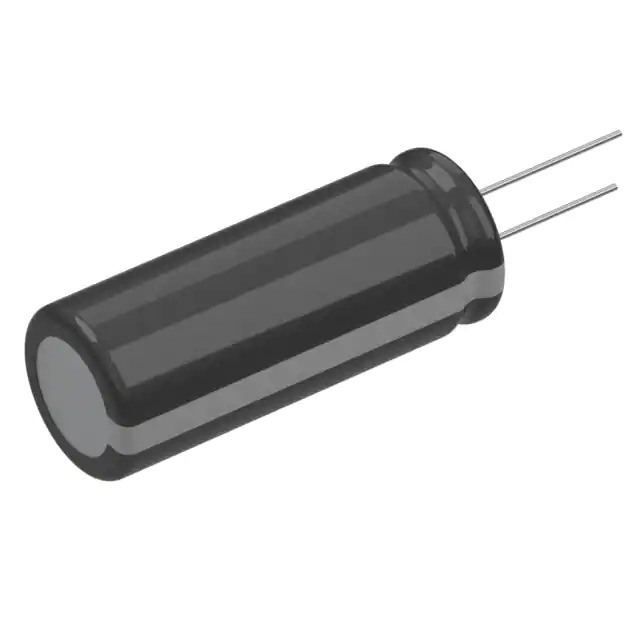

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TXW
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 440 mA @ 120 Hz
Ripple Current @ High Frequency 660 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.280" (32.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357884-400TXW47MEFR12.5X30
Ultra Librarian 3D Model Ultra Librarian 400TXW47MEFR12.5X30 CAD Model

Description

The Rubycon TXW series aluminum electrolytic capacitor is a reliable component designed for general-purpose applications.

  • Capacitance: 47 µF
  • Voltage - Rated: 400 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 440 mA @ 120 Hz
  • Ripple Current @ High Frequency: 660 mA @ 100 kHz
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height - Seated (Max): 1.280" (32.50mm)
  • Diameter: 0.492" (12.50mm)
  • Lifetime @ Temp.: 12000 Hrs @ 105°C
  • Active Product: Yes
  • REACH: Unaffected
  • Polarization: Polar
  • Manufacturer: Rubycon
