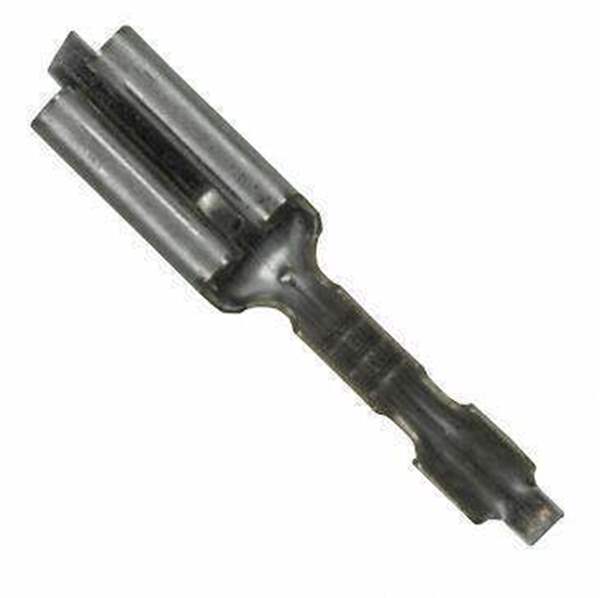

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Quick Connects, Quick Disconnect Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.016" (0.41mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.635" (16.13mm)
Win Source Part Number WS1208409-42415-1
Ultra Librarian 3D Model Ultra Librarian 42415-1 CAD Model

Description

0.110" (2.79mm) Quick Connect Female 22-24 AWG Crimp Connector Non-Insulated
