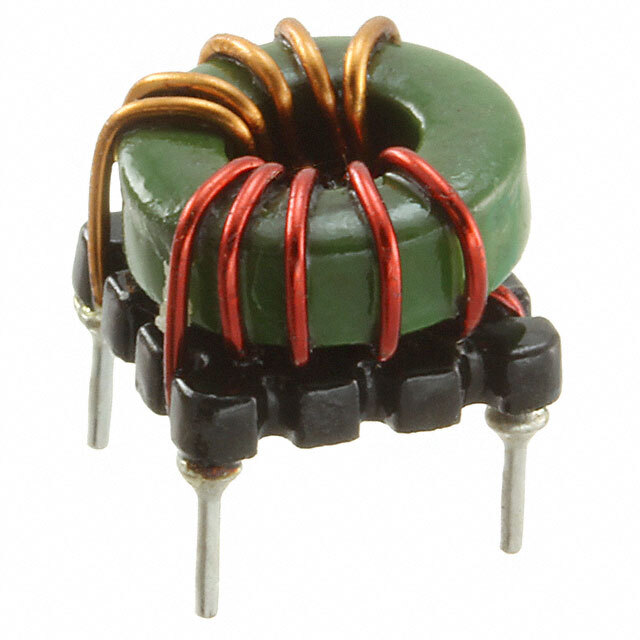

Same model may have multiple batches, images only for reference.
CMC-05 Recom Power – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CMC-05

Part No CMC-05
Manufacturer Recom Power
Catalog Common Mode Chokes
Description CMC 5.2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category FiltersCommon Mode Chokes
Manufacturer Recom Power
Series CMC
Packaging Tube
Part Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 5.2A
DC Resistance (DCR) (Max) 25mOhm
Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole
Size / Dimension 0.433" L x 0.433" W (11.00mm x 11.00mm)
Height (Max) 0.386" (9.80mm)
Package / Case Horizontal, 4 PC Pin
Ultra Librarian 3D Model Ultra Librarian CMC-05 CAD Model
