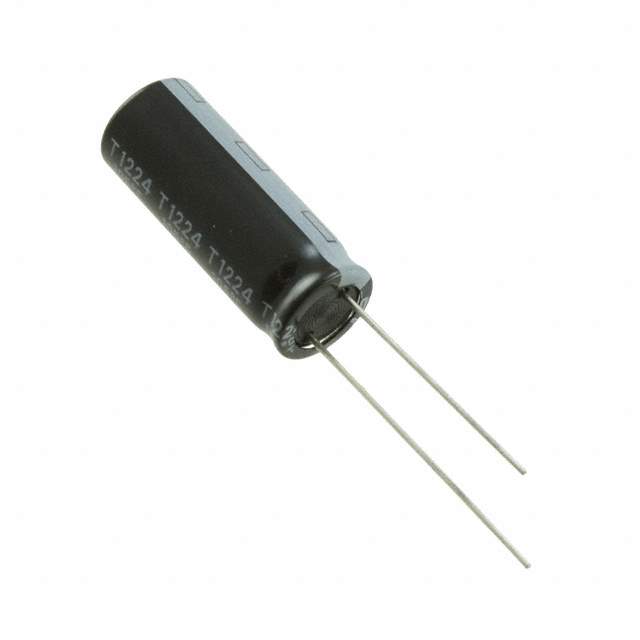

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 710 mA @ 120 Hz
Ripple Current @ High Frequency 1.598 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-3161
Standard Package 400
Win Source Part Number 1330497-400BXW100MEFR18X25
Ultra Librarian 3D Model Ultra Librarian 400BXW100MEFR18X25 CAD Model

Description

The Rubycon 1330497-400BXW100MEFR18X25 is a polarized aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 400 V.

  • Capacitance: 100 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 710 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.598 A @ 100 kHz
  • ESR: Not Specified
  • Lifetime: 12000 hours @ 105°C
  • Application: General Purpose
  • Package: Radial, Can
  • Height Seated: 1.063" (27.00mm)
  • Mounting Style: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
