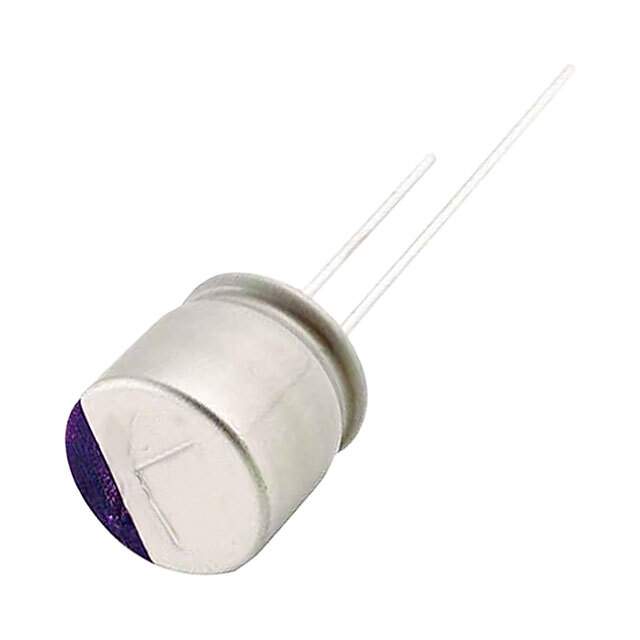

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Rubycon
Packaging Bulk
Type Hybrid
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 125 mA @ 120 Hz
Ripple Current @ High Frequency 2.5 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 25PZE330M100010X9-ND,25PZE330M100010X9
Standard Package 1,000
Win Source Part Number 1328569-25PZE330M10X9
Ultra Librarian 3D Model Ultra Librarian 25PZE330M10X9 CAD Model

Description

The Rubycon electronic component with Id 1142117 is an aluminum-polymer capacitor that is designed for use in automotive applications.

  • Manufacturer: Rubycon
  • Capacitance: 330μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 20mOhm
  • Application: Automotive
