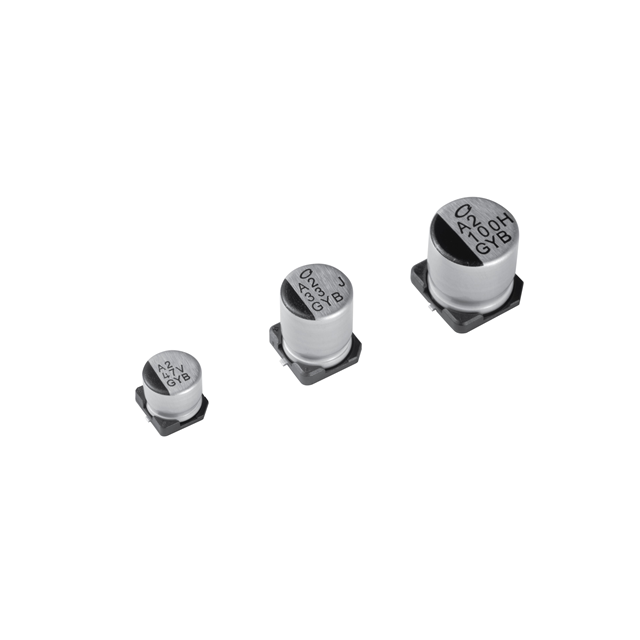

GYB1J220MCQ1GS Real Image
Same model may have multiple batches, images only for reference.

GYB1J220MCQ1GS

Part No GYB1J220MCQ1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 63V SMD / 22 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Nichicon
Series GYB
Package Tape & Reel
Type Hybrid
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 80mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 225 mA @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-17898-2,493-17898-1,493-17898-6
Standard Package 900
Win Source Part Number 1143079-GYB1J220MCQ1GS
Ultra Librarian 3D Model Ultra Librarian GYB1J220MCQ1GS CAD Model

Description

The Nichicon GYB series hybrid aluminum-polymer capacitors are designed for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 63 V
  • ESR: 80mOhm
  • Ripple Current: 225 mA @ 120 Hz and 1.5 A @ 100 kHz
  • Lifetime: 10000 Hrs @ 105°C
  • Operating Temperature: -55°C to 105°C
  • Package/Case: Radial, Can-SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Height: 0.315" (8.00mm)
  • Dimension: 0.248" Dia (6.30mm)
  • Packaging: Tape and Reel
  • Standard Package: 900
