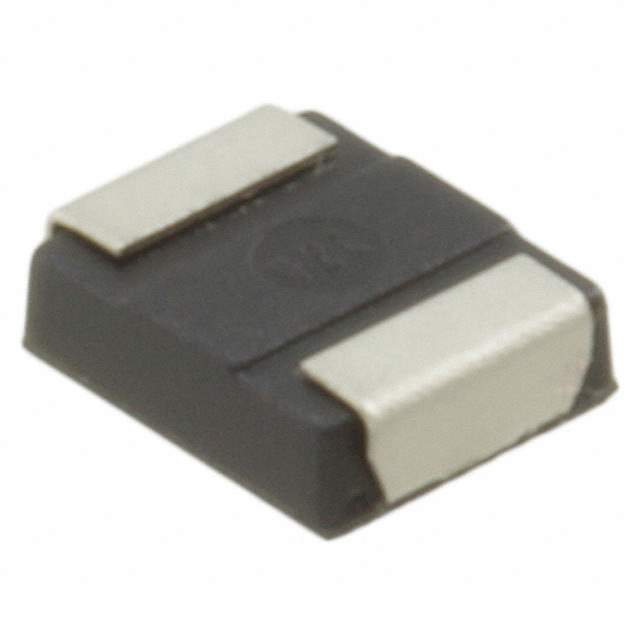

The 6TPG100MZGD is a surface mount tantalum polymer capacitor manufactured by Panasonic. It belongs to the TPG series, known for its low ESR (Equivalent Series Resistance), high ripple current capability, and stable performance over a wide temperature range. These capacitors are particularly well-suited for use in power management circuits, decoupling applications, and other high-performance applications where stable and reliable operation is critical.

Applications

• Power management circuits: Voltage regulation and filtering.
• Decoupling applications: Noise reduction in digital circuits.
• DC-DC converters: Input and output filtering.
• Portable devices: Power supply bypassing and energy storage.
• High-frequency circuits: Performance enhancement in RF and microwave applications.

Features

• Tantalum Polymer Construction: Provides stable performance and long life.
• Low ESR (Equivalent Series Resistance): Minimizes power dissipation and voltage ripple.
• High Ripple Current Capability: Handles high AC ripple currents without significant heating.
• Surface Mount Technology (SMT): Facilitates automated assembly.
• Stable Performance: Maintains consistent capacitance and ESR over temperature and voltage variations.
• Lead-Free: Compliant with RoHS environmental standards.

Benefits

• Improved Power Supply Performance: Low ESR reduces voltage ripple and enhances power supply stability.
• Enhanced Noise Reduction: Effective decoupling minimizes noise in digital circuits.
• Extended Operating Life: Tantalum polymer construction ensures long-term reliability.
• Simplified Assembly: Surface mount technology allows for automated placement and soldering.
• Stable Operation: Consistent performance over temperature and voltage variations.
• Environmentally Friendly: Lead-free construction complies with environmental regulations.

Additional Details

The 6TPG100MZGD has a capacitance of 10 µF with a tolerance of ±20%. It is rated for a voltage of 6.3 VDC. The surface mount package facilitates easy integration into modern electronic designs. The tantalum polymer construction provides excellent stability and long life, making it a reliable choice for demanding applications. The capacitor is designed to operate over a wide temperature range, typically from -55°C to +105°C. Its low ESR and high ripple current capability make it particularly suitable for power management circuits and decoupling applications. Case size is typically 0805 or similar depending on the manufacturer's exact specifications.
