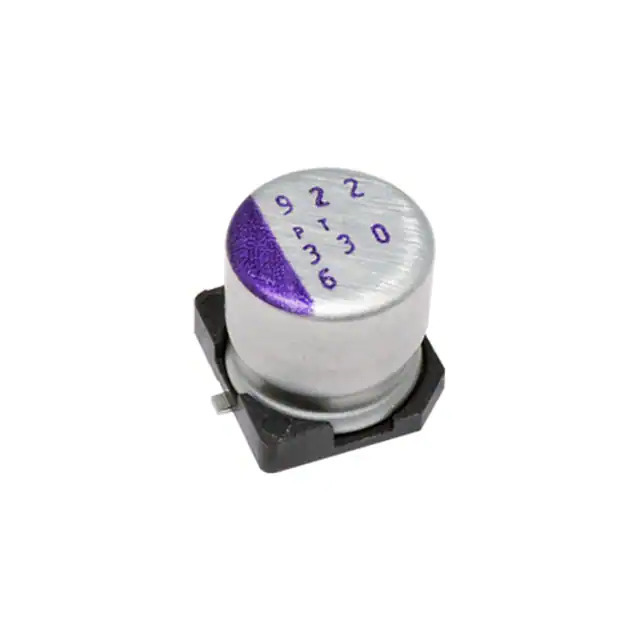

Same model may have multiple batches, images only for reference.

6SVPT330M

Name: 6SVPT330M
Brand: Panasonic
SKU: 1355513
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	6SVPT330M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 330UF 20% 6.3V SMD / 330 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 15mOhm 20000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPT
Package	Tape & Reel
Product Status	Active
Type	Polymer
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	6.3 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	20000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	169.5 mA @ 120 Hz
Ripple Current @ High Frequency	3.39 A @ 100 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	6SVPT
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1355513-6SVPT330M
Ultra Librarian 3D Model	Ultra Librarian 6SVPT330M CAD Model

Description

The Panasonic Electronic Components 6SVPT330M is an aluminum polymer capacitor with a capacitance of 330 µF and a voltage rating of 6.3 V.

Capacitance: 330 µF
Voltage Rating: 6.3 V
Tolerance: ±20%
ESR: 15 mOhms
Series: OS-CON™ SVPT
Manufacturer: Panasonic
Mounting Type: Surface Mount
Packaging: Tape and Reel
Diameter: 6.30mm
Height: 6.50mm
Ripple Current (Low Frequency): 169.5 mA @ 120 Hz
Ripple Current (High Frequency): 3.39 A @ 100 kHz
Lifetime: 20000 hours @ 105°C
Application: General Purpose
