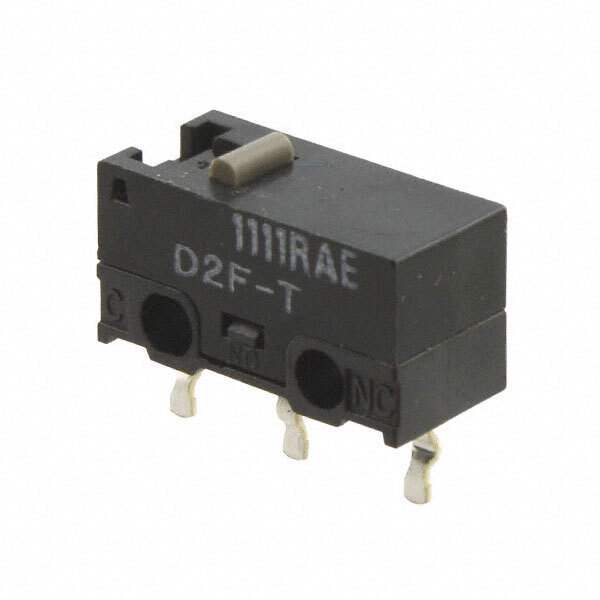

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1308878-D2F-T
Category Switches >Limit Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Packaging
Part Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Ultra Librarian 3D Model Ultra Librarian D2F-T CAD Model

Description

  • Incorporating a snapping mechanism made withtwo highly precise split springs that ensures long<br />durability.
  • Using insertion molded terminalsthat prevents flux penetration.@In addition to self-clinching PCB, left-angled,right-angled terminals,2 types of soldering terminals are available.
  • Lineup of 5A type for high load applications.
