Same model may have multiple batches, images only for reference.

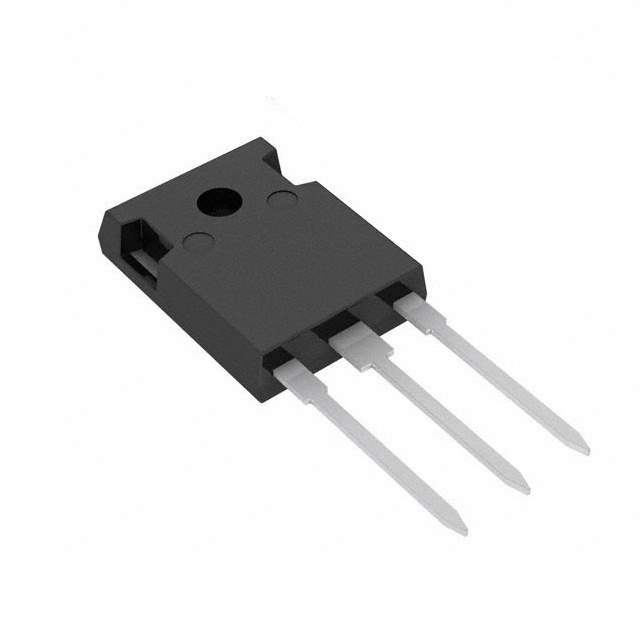

SCS220KE2HRC11 Real Image
Same model may have multiple batches, images only for reference.

SCS220KE2HRC11

Part No SCS220KE2HRC11
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 650V TO-247AC / Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 1200 V 10A (DC) Through Hole TO-247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Rohm Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 10A (DC)
Voltage - Forward (Vf) (Max) @ If 1.6 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1200 V
Operating Temperature - Junction 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 846-SCS220KE2HRC11
Standard Package 450
Win Source Part Number 969168-SCS220KE2HRC11
Ultra Librarian 3D Model Ultra Librarian SCS220KE2HRC11 CAD Model

Description

The Rohm Semiconductor SCS220KE2HRC11 is a Silicon Carbide Schottky Diode Rectifier Array that is designed for use in a variety of electronic devices.

  • Reverse Voltage (Max): 1200 V
  • Forward Voltage (Max) @ Current: 1.6 V @ 10 A
  • Current Rating (DC): 10A (per diode)
  • Mounting: Through-Hole
  • Manufacturer: Rohm Semiconductor
  • Supply: Unlimited
  • Description: This diode array is an excellent choice for anyone looking for a high-quality and reliable rectifier array for their electronic projects.
