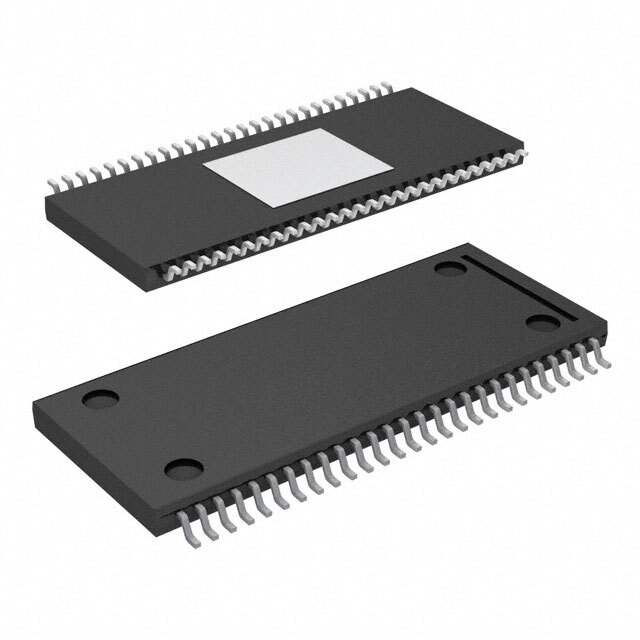

BD7763EFV-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Function Driver
Interface Logic
Technology Power MOSFET
Applications DVD, Blu-Ray
Current - Output 2.5A
Voltage - Supply 4.3V ~ 13.2V
Temperature Range - Operating -20°C ~ 75°C (TA)
Mounting Type Surface Mount
Package / Case 54-VSSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package 54-HTSSOP-B
Base Product Number BD7763
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 570172-BD7763EFV-E2
Ultra Librarian 3D Model Ultra Librarian BD7763EFV-E2 CAD Model

Description

The 570172-BD7763EFV-E2 is a motor driver integrated circuit (IC) used in power management applications, specifically for DVD and Blu-Ray devices.

  • Category: Motor Drivers, Controllers
  • Application: Power Management, DVD and Blu-Ray Devices
  • Output Current: Up to 2.5A
  • Technology: Power MOSFET
  • Interface: Logic
  • Package: 54-VSSOP
  • Exposed Pad: Yes
  • Supplier Device Package: 54-HTSSOP-B
  • Operating Temperature: -20°C to 75°C
  • Manufacturer: Rohm Semiconductor
  • New Designs: Not Intended
