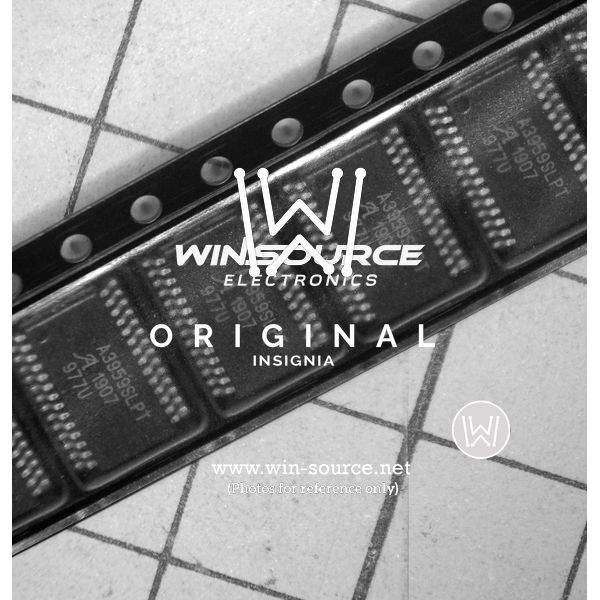

A3959SLPTR Real Image A3959SLPTR real image17052
Same model may have multiple batches, images only for reference.
A3959SLPTR Real Image A3959SLPTR real image17052
A3959SLPTR Real Image A3959SLPTR real image17052
Same model may have multiple batches, images only for reference.

A3959SLPTR

Part No A3959SLPTR
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description DMOS Full-Bridge PWM Motor Driver | IC MOTOR DRVR 4.5V-5.5V 28TSSOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tape and Reel
Status Obsolete
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology DMOS
Applications General Purpose
Output Current 3A
Supply Voltage (V) 4.5V ~ 5.5V
Load Voltage (V) 9.5V ~ 50V
Temperature Range - Operating -20°C ~ 150°C
Mounting Style SMD
Manufacturer Package 28-TSSOP Exposed Pad
Supplier Device Package 28-TSSOP-EP
Family Part Number A3959
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Win Source Part Number 1134599-A3959SLPTR
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A3959SLPTR CAD Model

Description

The Allegro MicroSystems A3959SLPTR is a fully integrated DMOS driver IC that can be used in various general-purpose applications.

  • Output configuration: half-bridge
  • Outputs: two
  • Output current: up to 3A
  • Designed for: brushed DC motors
  • Package: 28-TSSOP-EP
  • Supply voltage range: 4.5V to 5.5V
  • Load voltage range: 9.5V to 50V
  • Operating temperature range: -20°C to 150°C
  • Status: obsolete
  • Supply and demand status: limited
  • Manufacturer pack quantity: 4,000
