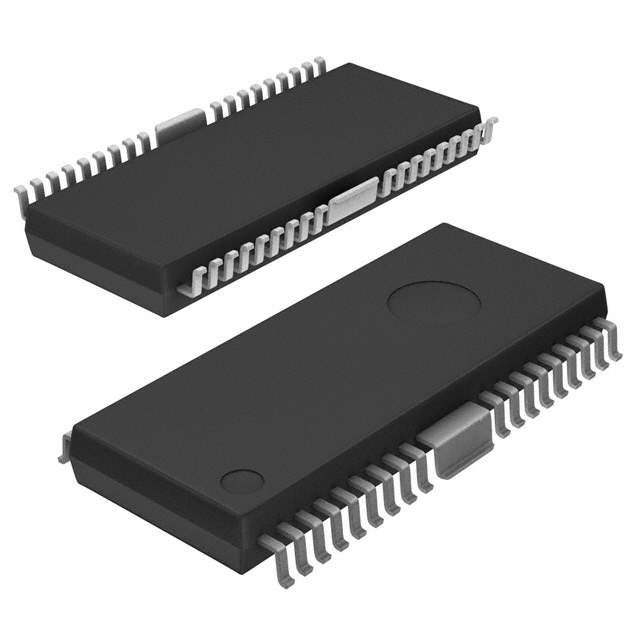

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - AC, DC Brushed DC
Function Driver
Output Configuration Pre-Driver - Half Bridge (2)
Interface On/Off
Technology DMOS
Applications Printer
Current - Output 5A
Voltage - Supply 8V ~ 46.2V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Supplier Device Package 36-HSOP-M
Base Product Number BD63150
Standard Package 1,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1345586-BD63150AFM-E2
Ultra Librarian 3D Model Ultra Librarian BD63150AFM-E2 CAD Model

Description

The BD63150AFM-E2 is a DMOS motor driver IC designed for use in printers.

  • Current Output: 5A
  • Interface: on/off
  • Output Configuration: pre-driver - half bridge (2)
  • Motor Type: brushed DC
  • Voltage Supply: 8V to 46.2V
  • Mounting Type: surface mountable
  • Package / Case: 36-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
  • Temperature Range: -25°C ~ 85°C (TA)
  • Manufacturer: Rohm Semiconductor
  • Base Product Number: BD63150
