Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bi-CMOS
Applications Camera
Output Current 400mA
Supply Voltage - Operating 2.7 V to 5.5 V
Voltage - Load 2.7 V to 5.5 V
Temperature Range - Operating -20°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 40-VQLP (5x5)
Win Source Part Number 020754-LV8044LP-TLM-E
Ultra Librarian 3D Model Ultra Librarian LV8044LP-TLM-E CAD Model

Description

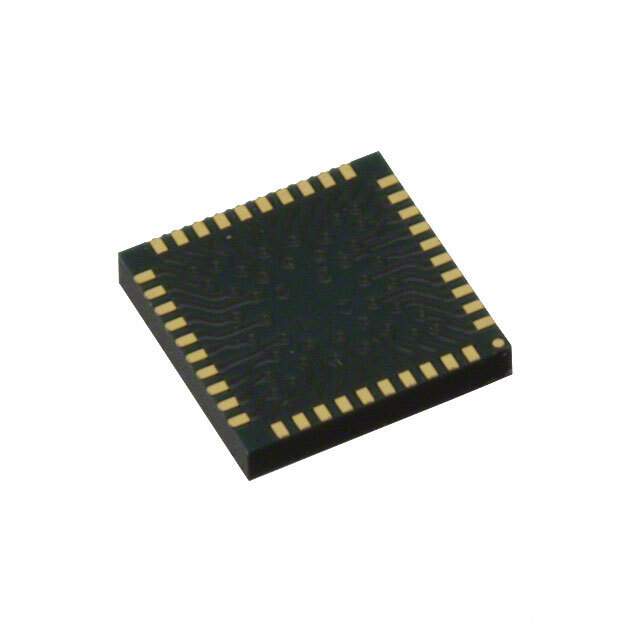

ON Semiconductor LV8044LP-TLM-E Motor Driver IC

The LV8044LP-TLM-E from ON Semiconductor is a highly efficient, low-voltage motor driver IC designed for a wide range of applications. This compact and versatile driver is capable of controlling a small two-phase bipolar stepping motor, which makes it an ideal solution for portable devices where power consumption and space are critical factors.

Key Features:

  • Low Voltage Operation: The LV8044LP-TLM-E operates at a voltage range from 2.7V to 5.5V, making it suitable for battery-powered applications where efficient energy use is paramount.
  • Compact Package: Enclosed in a small SSOP16 package, the device minimizes the footprint on the PCB, thereby allowing for more compact designs.
  • High Output Current: Despite its small size, it can deliver an output current of up to 750mA, providing sufficient power for a range of small motors.
  • Low ON Resistance: The IC features low ON resistance of the output transistor, which reduces power loss and improves efficiency during motor operation.
  • Excitation Mode Selectable: Users can select from full, half, quarter, or 1/8 step excitation modes, offering flexibility in controlling the motor's speed and precision.
  • Thermal Shutdown Function: To ensure the safety and longevity of the device, it comes with a built-in thermal shutdown function that prevents damage from overheating.

Applications:

The LV8044LP-TLM-E is suited for a variety of applications that require precise motor control, including but not limited to:

  • Portable electronic devices
  • Battery-operated toys
  • Small office equipment
  • Medical devices

With its low power consumption, high efficiency, and flexible control options, the LV8044LP-TLM-E from ON Semiconductor stands out as a reliable motor driver solution for designers looking to optimize their motor control systems in space-sensitive and power-aware applications.
