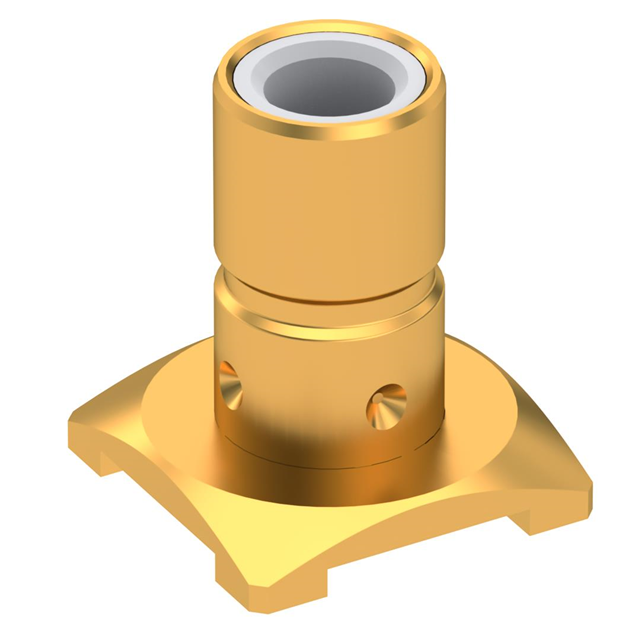

R114424000 Radiall USA, Inc.
Same model may have multiple batches, images only for reference.

R114424000

Part No R114424000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SMB M SMT C100
Datasheet
R114424000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310329-R114424000
Category Connectors, Interconnects >Coaxial Connectors (RF)> Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Packaging Bulk
Part Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian R114424000 CAD Model

Description

SMB Connector Jack, Male Pin 50 Ohms Surface Mount Solder
