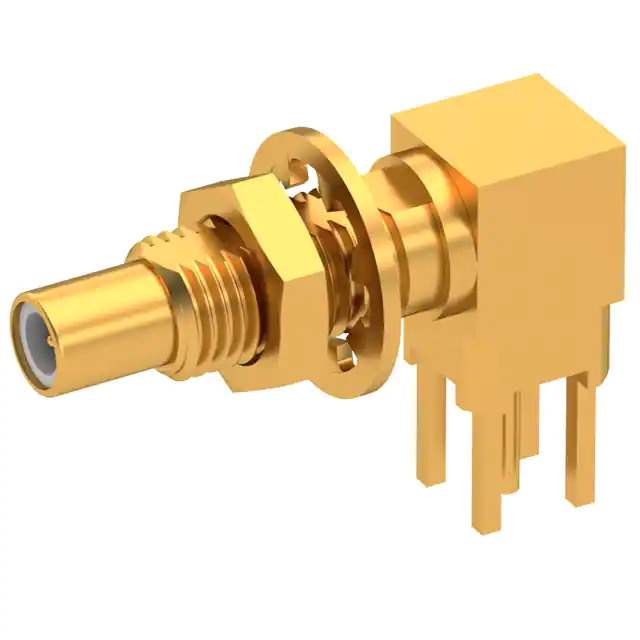

7110-1511-050 Real Image
Same model may have multiple batches, images only for reference.

7110-1511-050

Part No 7110-1511-050
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF) - Assemblies
Description SSMC M RA BHD PCB / SSMC Connector Jack, Male Pin 50Ohm Panel Mount, Through Hole, Right Angle Solder
Datasheet
7110-1511-050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Radiall USA, Inc.
Package Bulk
Product Status Active
Connector Style SSMC
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Snap-On
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 250 V
Mating Cycles 500
Base Product Number 7110-1511
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 907790-7110-1511-050
Ultra Librarian 3D Model Ultra Librarian 7110-1511-050 CAD Model

Description

The 907790-7110-1511-050 is a coaxial connector assembly with a jack and male pin connector type.

  • Connector Type: Coaxial
  • Connector Type: Jack and Male Pin
  • Fastening Type: Snap-On
  • Contact Termination: Solder
  • Voltage Rating: 250V
  • Frequency Range: Up to 12.4GHz
  • Impedance: 50Ohm
  • Housing Color: Gold
  • Mounting: Panel Mount, Through-Hole, Right-Angle
  • Status: Active
  • Manufacturer: Radiall USA, Inc.
