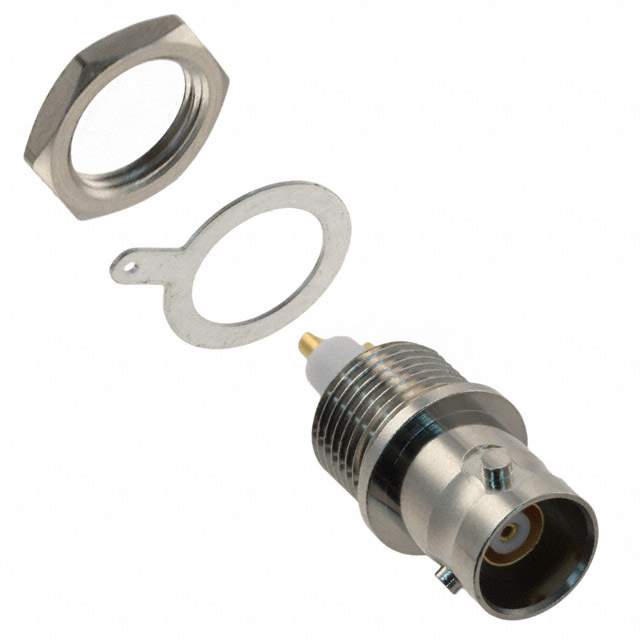

5219 Real Image
Same model may have multiple batches, images only for reference.

5219

Part No 5219
Manufacturer Pomona Electronics
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC TRIAX JACK STR 50 OHM
Datasheet
5219 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Pomona Electronics
Package Bulk
Product Status Active
Connector Style BNC, Triaxial
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Frequency - Max 500 MHz
Number of Ports 1
Features Extended Insulation, Three Lug
Housing Color Silver
Center Contact Material Beryllium Copper
Includes 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 546383-5219
Ultra Librarian 3D Model Ultra Librarian 5219 CAD Model

Description

The BNC coaxial connector assembly from Pomona Electronics is a reliable and high-quality connector for RF applications.

  • Features: Extended Insulation
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500V
  • Frequency Range: Up to 500MHz
  • Material: Brass with Nickel Finish
  • Center Contact Material: Beryllium Copper with Gold Plating
  • Mounting: Panel Mount
  • Temperature Range: -65°C to 165°C
  • Package: Bulk
  • Status: Active
  • HTSUS Code: 8536.69.4010
