Part No 142-0701-201
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies

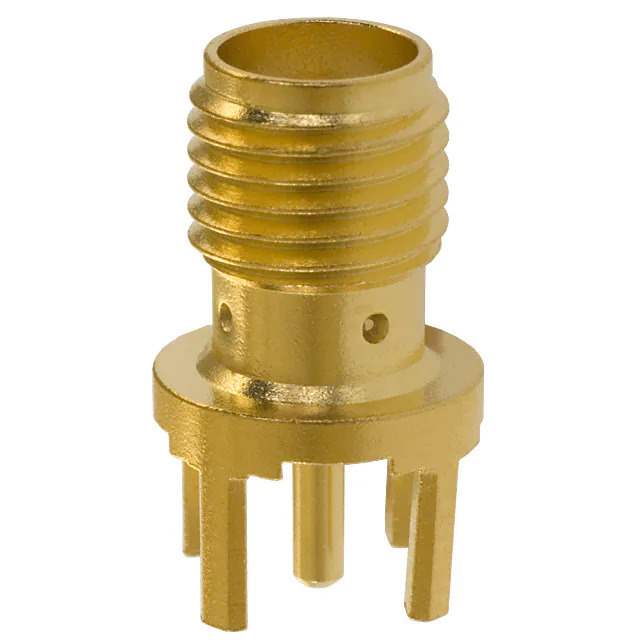

Description CONN SMA JACK STR 50 OHM PCB
Datasheet
142-0701-201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Mating Cycles 500
Base Product Number 142-0701
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 845390-142-0701-201
Ultra Librarian 3D Model Ultra Librarian 142-0701-201 CAD Model

Description

The Cinch Connectivity Solutions 142-0701-201 is an active coaxial connector assembly with the Win Source Part Number 845390 from Cinch Connectivity Solutions.

  • Category: Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
  • Type: Threaded Jack with Female Socket
  • Package: Bulk
  • Standard Package: 25 pieces
  • Voltage Rating: 335 V
  • Maximum Frequency: 18 GHz
  • Impedance: 50 Ohm
  • Housing Color: Gold
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4010
