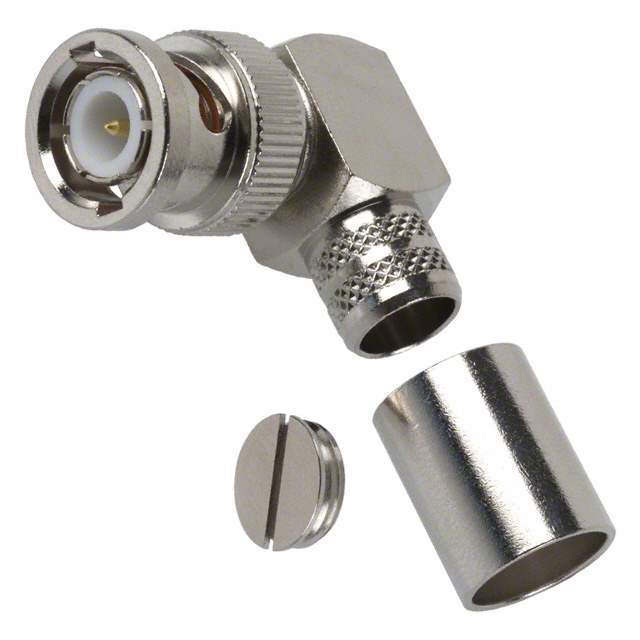

112594 Real Image
Same model may have multiple batches, images only for reference.

112594

Part No 112594
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC PLUG R/A 50 OHM SOLDER / BNC Connector Plug, Male Pin 50Ohm Free Hanging (In-Line), Right Angle Solder
Datasheet
112594 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style BNC
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Fastening Type Bayonet Lock
Frequency - Max 4 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 1125
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 891630-112594
Ultra Librarian 3D Model Ultra Librarian 112594 CAD Model

Description

The Amphenol-RF Division 891630-112594 is a coaxial connector assembly designed for RF applications.

  • Connector Type: plug and male pin
  • Fastening Type: bayonet lock
  • Package: bag
  • Contact Termination: solder
  • Connector Style: BNC
  • Voltage Rating: 500 V
  • Housing Color: silver
  • Port: single
  • Standard Package: 1 piece
  • Impedance: 50 Ohms
  • Body Material: brass
  • Body Finish: nickel
  • Center Contact Material: brass
  • Center Contact Plating: gold
  • Dielectric Material: polytetrafluoroethylene (PTFE)
  • Insertion Loss: 0.2dB
  • Shield Termination: crimp
  • Cable Group Compatibility: RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
  • Mating Cycle: 500
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8536.69.4010
  • Manufacturer: Amphenol-RF Division
  • Base Product Number: 1125
  • California Prop 65: requires a warning information label
