Same model may have multiple batches, images only for reference.

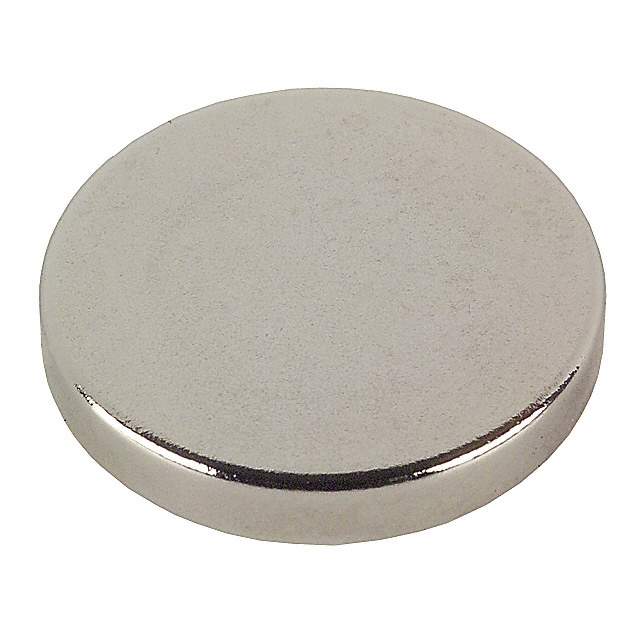

8012 Real Image
Same model may have multiple batches, images only for reference.

8012

Part No 8012
Manufacturer Radial Magnets, Inc.
Catalog Multi Purpose Magnets
Description MAGNET 1.000"D X 0.063"THICK CYL
Datasheet
8012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnets - Multi Purpose Magnets
Mfr Radial Magnets, Inc.
Package Bulk
Product Status Active
Shape Cylindrical
Magnetization Axial
Material Neodymium Iron Boron (NdFeB)
Finish NiCuNi
Grade N35
Gauss Strength 753G (Surface Gauss)
Size 1.000" Dia x 0.063" H (25.4mm x 1.59mm)
Temperature Range - Operating 80°C (TA)
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 551125-8012
Ultra Librarian 3D Model Ultra Librarian 8012 CAD Model

Description

The Neodymium Iron Boron (NdFeB) cylindrical magnet is a high-quality magnet suitable for various sensor and transducer applications. Manufactured by Radial Magnets, Inc., this magnet has a size of 1.000" Dia x 0.063" H (25.4mm x 1.59mm) and a NiCuNi finish.

  • Operating Temperature: Up to 80°C
  • Gauss Strength: 753G
  • Product Status: Active
  • Magnetization: Axial
  • Grade: N35
