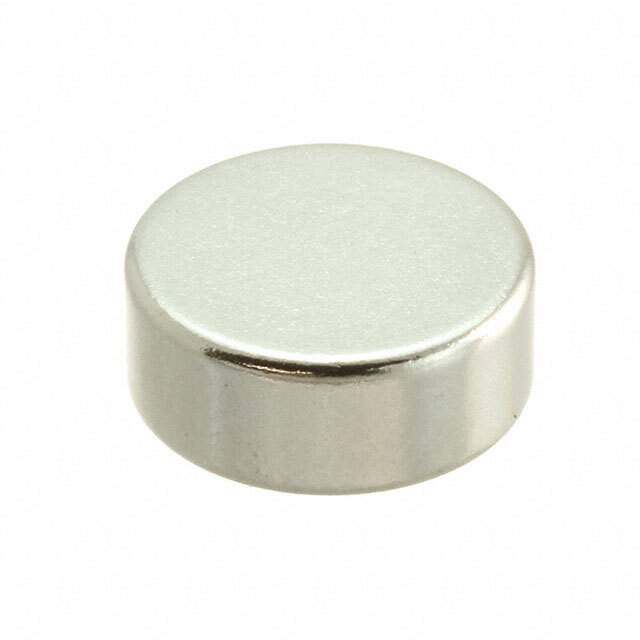

9040 Real Image
Same model may have multiple batches, images only for reference.

9040

Part No 9040
Manufacturer Radial Magnets, Inc.
Catalog Multi Purpose Magnets
Description MAGNET 0.236"D X 0.098"THICK CYL
Datasheet
9040 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnets - Multi Purpose Magnets
Mfr Radial Magnets, Inc.
Package Bulk
Product Status Active
Shape Cylindrical
Magnetization Axial
Material Neodymium Iron Boron (NdFeB)
Finish NiCuNi
Grade N35SH
Size 0.236" Dia x 0.098" H (6.00mm x 2.50mm)
Temperature Range - Operating 150°C (TA)
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8505.11.0070
Win Source Part Number 858577-9040
Ultra Librarian 3D Model Ultra Librarian 9040 CAD Model

Description

The Multi Purpose Magnet by Radial Magnets, Inc. is a versatile and powerful magnet that can be used in various applications.

  • Material: Neodymium Iron Boron (NdFeB)
  • Shape: Cylindrical
  • Size: 0.236" diameter x 0.098" height (6.00mm x 2.50mm)
  • Finish: NiCuNi
  • Operating Temperature Range: Up to 150°C
  • Commonly Used In: Sensors and Transducers
  • Compliance: REACH
