Same model may have multiple batches, images only for reference.

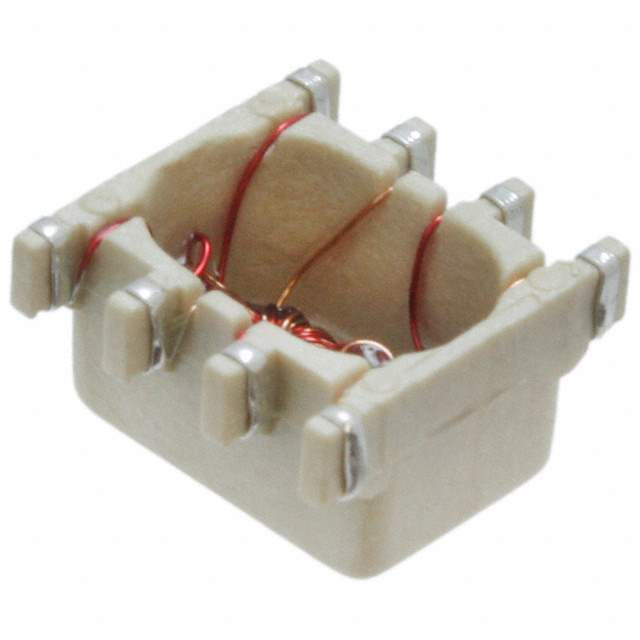

PE-68627NL Real Image
Same model may have multiple batches, images only for reference.

PE-68627NL

Part No PE-68627NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4LN SMD
Datasheet
PE-68627NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 250 mOhm
Mounting SMD (SMT)
Height (Max) 0.207" (5.26mm)
Dimension Vertical, 8 Flat Lead
Win Source Part Number 026663-PE-68627NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-68627NL CAD Model

Description

The Pulse Electronics Corporation PE-68627NL is a filter that is designed for use with signal lines.

  • Supply and Demand Status: Balanced
  • Packaging: Tube/rail
  • Dimension: Vertical, 8 flat lead dimension
  • Mounting: SMD (SMT) technology
  • Voltage Rating - DC: Not specified
  • Current Rating (Max): Not specified
