Same model may have multiple batches, images only for reference.

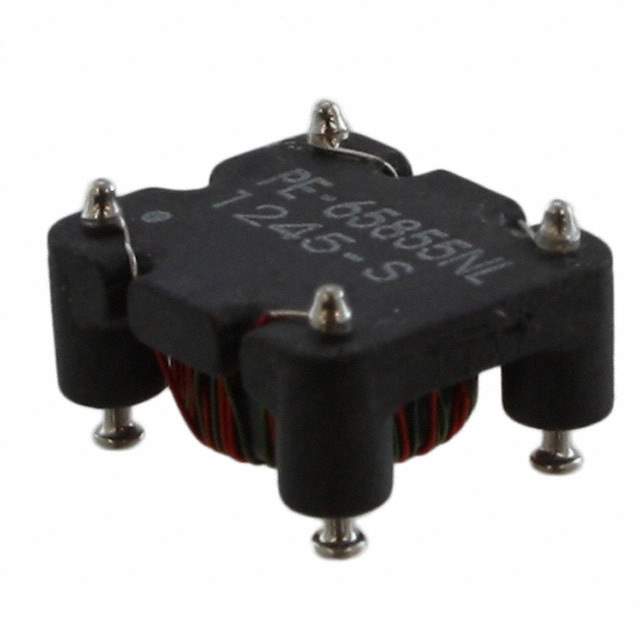

PE-65855NLT Real Image
Same model may have multiple batches, images only for reference.

PE-65855NLT

Part No PE-65855NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 2LN SMD / Common Mode Chokes Dual 4700uH 26dB 1Ohm DCR SMD T/R
Datasheet
PE-65855NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Maximum) 1 Ohm
Mounting SMD
Dimension 0.400" L x 0.345" W (10.16mm x 8.76mm)
Height (Maximum) 0.250" (6.35mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 791653-PE-65855NLT
Popularity Medium
Supply and Demand Status Balance
Family Name PE-65855
Introduction Date January 27, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PE-65855NLT CAD Model

Description

The Pulse Electronics Corporation PE-65855NLT is a signal line filter that is designed for use in various applications.

  • Package: Horizontal, 4 PC pad
  • Mounting: Surface mount
  • Maximum DC Resistance: 1 Ohm
  • Compliance: Halogen-free
  • Applications: Power supplies, telecommunications equipment, and other electronic devices
