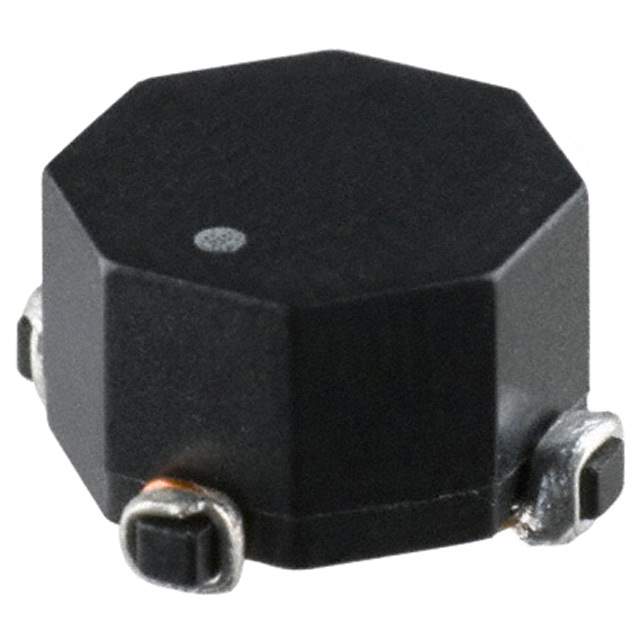

CMS2-7-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-7-R

Part No CMS2-7-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 270UH 1.6A 2LN SMD / 270 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.6A DCR 60mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 270 µH @ 100 kHz
Current Rating (Max) 1.6A
DC Resistance (DCR) (Max) 60mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 513-1789-1,513-1789-2,CMS2-7-R-ND,513-1789-6,CMS2-7,CMS27R,CMS2-7-ND
Standard Package 800
Win Source Part Number 1032142-CMS2-7-R
Ultra Librarian 3D Model Ultra Librarian CMS2-7-R CAD Model

Description

The CMS2-7-R common mode choke is a filter designed for use in power line applications.

  • Voltage Rating: AC and DC
  • Current Rating: 1.6A
  • Package: Tape & reel
  • Mounting Type: SMD (SMT) mountable
  • Height: 0.236" (6.00mm)
  • Lines: Two
  • Series: CMS
  • Manufacturer: Eaton - Electronics Division
  • RoHS Compliant: Yes
  • ECCN: EAR99
