Same model may have multiple batches, images only for reference.

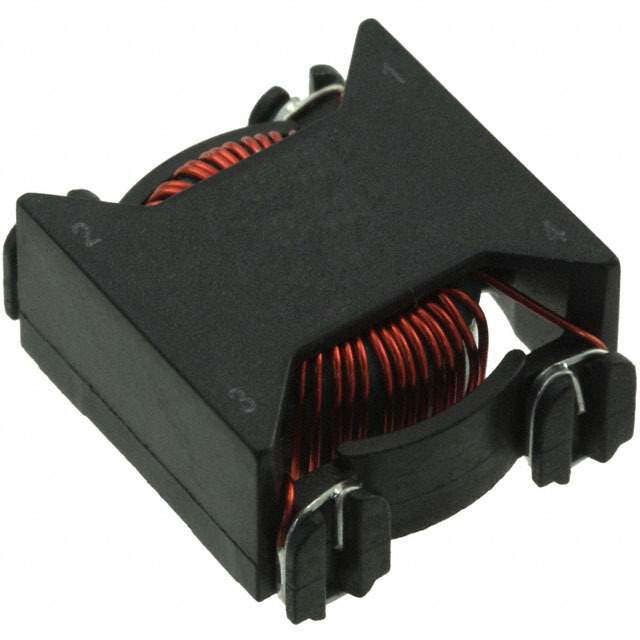

PE-53910NL Real Image
Same model may have multiple batches, images only for reference.

PE-53910NL

Part No PE-53910NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 3.6A 2LN SMD / Common Mode Chokes Dual 600uH 3.6A 0.05Ohm DCR SMD Automotive Tube
Datasheet
PE-53910NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tube
Number of Lines 2
Current Rating (Maximum) 3.6A
DC Resistance (DCR) (Maximum) 50 mOhm
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 130°C
Mounting SMD
Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Maximum) 0.390" (9.90mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 791647-PE-53910NL
Popularity Medium
Supply and Demand Status Limited
Family Name PE-53
Introduction Date April 29, 2002
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian PE-53910NL CAD Model

Description

The Pulse Electronics Corporation PE-53 series filter is a high-quality component designed for use in a variety of electronic applications.

  • Type: 2-line filter
  • Maximum Current Rating: 3.6A
  • Maximum DC Resistance: 50 mOhm
  • Operating Temperature: -40°C to 130°C
  • Package: Horizontal, 4 PC pad
  • Mounting: Surface
  • Dimensions: 0.770" L x 0.670" W (19.56mm x 17.02mm)
  • Height: 0.390" (9.90mm)
  • Family Name: PE-53
  • Manufactured In: China
  • Estimated EOL Date: 2025
  • Supply and Demand Status: Limited
