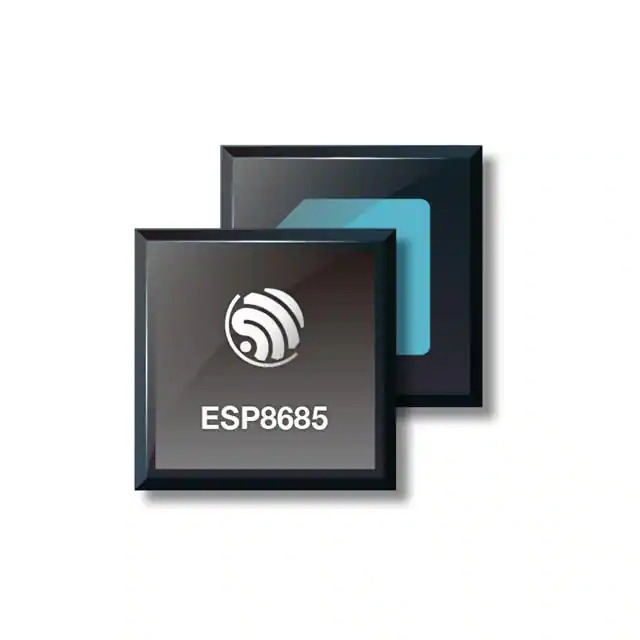

ESP8685H4 Espressif
Same model may have multiple batches, images only for reference.

ESP8685H4

Part No ESP8685H4
Manufacturer Espressif
Catalog RF Transceiver ICs
Description SMD IC ESP8685H4, SINGLE-CORE MC
Datasheet
ESP8685H4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Espressif Systems
Series ESP8685
Package Tape & Reel
Product Status Active
Type TxRx + MCU
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v5.0
Modulation -
Frequency 2.4GHz
Data Rate (Max) 150Mbps
Power - Output 21dBm
Sensitivity -98.4dBm
Memory Size 4MB Flash, 384kB RAM, 400kB SRAM
Serial Interfaces ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB
GPIO 15
Voltage - Supply 3V ~ 3.6V
Current - Receiving 84mA ~ 87mA
Current - Transmitting 276mA ~ 335mA
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 28-VFQFN Exposed Pad
Supplier Device Package 28-QFN (4x4)
Base Product Number ESP8685
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1368619-ESP8685H4
Ultra Librarian 3D Model Ultra Librarian ESP8685H4 CAD Model

Description

The ESP8685H4 is a versatile RF transceiver IC designed by Espressif Systems.

  • IC Type: TxRx + MCU
  • Frequency: 2.4GHz
  • Package / Case: 28-VFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Voltage - Supply: 3V to 3.6V
  • Flash Memory: 4MB
  • RAM: 384kB
  • SRAM: 400kB
  • Bluetooth Version: v5.0
  • WiFi Standards: 802.11b/g/n
  • Power Output: 21dBm
  • Sensitivity: -98.4dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PWM, SPI, UART, USB
