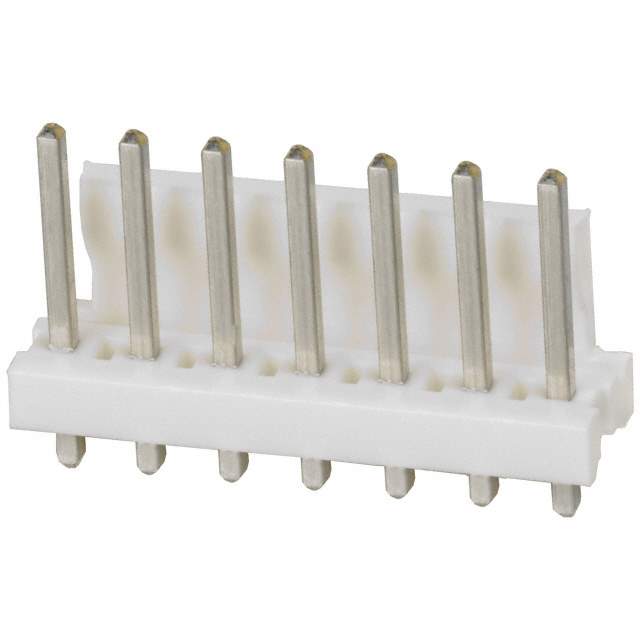

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810643-640445-7
Ultra Librarian 3D Model Ultra Librarian 640445-7 CAD Model

Description

The TE Connectivity AMP Connectors 640445-7 is a through-hole header connector.

  • Positions Loaded: 7 (Single Row)
  • Voltage Rating: 600VAC
  • Flammability Rating: UL94 V-0
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Mating Pitch: 0.156" (3.96mm)
  • Mating Contact Length: 0.400" (10.16mm)
  • Insulation Height: 0.425" (10.80mm)
  • Color: Natural
  • Shrouding: 1 Wall
  • Fastening Type: Friction Lock
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
  • Current Rating: Varies by wire gauge
