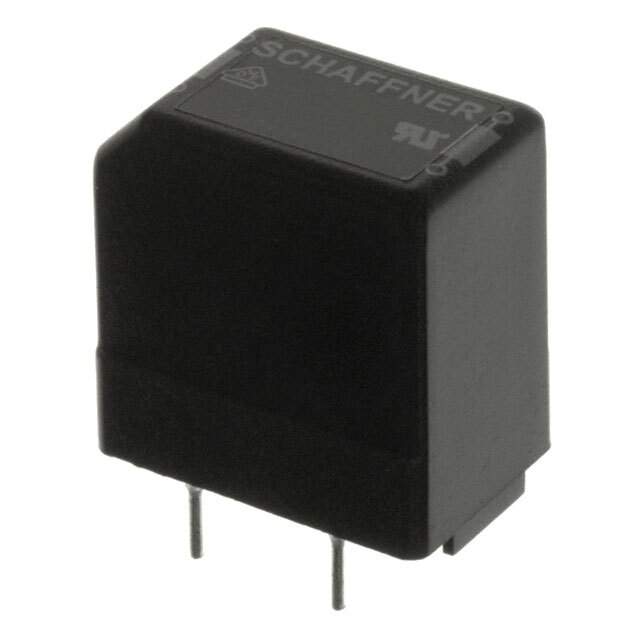

RN214-1-02-15M Real Image
Same model may have multiple batches, images only for reference.

RN214-1-02-15M

Part No RN214-1-02-15M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 15MH 1A 2LN TH / 15 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 370mOhm (Typ)
Datasheet
RN214-1-02-15M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 15 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 370mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.906" L x 0.610" W (23.00mm x 15.50mm)
Height (Max) 0.996" (25.30mm)
Package / Case Vertical, 4 PC Pin
Base Product Number RN214
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 817-2181,816554
Standard Package 500
Win Source Part Number 1024912-RN214-1-02-15M
Ultra Librarian 3D Model Ultra Librarian RN214-1-02-15M CAD Model

Description

The Schaffner EMC Inc. RN214-1-02-15M common mode choke is a power line filter designed for use in electronic circuits.

  • Voltage Rating: 300V AC
  • Current Rating: 1A
  • Inductance: 15mH @ 10kHz
  • DC Resistance: 370mOhm (typ)
  • Mounting: Through Hole
  • Package/Case: Vertical, 4 PC Pins
  • Temperature Range: -40°C to 100°C
  • Series: RN
  • Package: Tube
  • Alternative Parts: RN114-1-02-15M, RN216-0.8-02-27M, RN116-0.8-02-27M, B82731T2132A20, DLW21SN900HQ2L, EXC24CP121URN 214-1-02-15M
