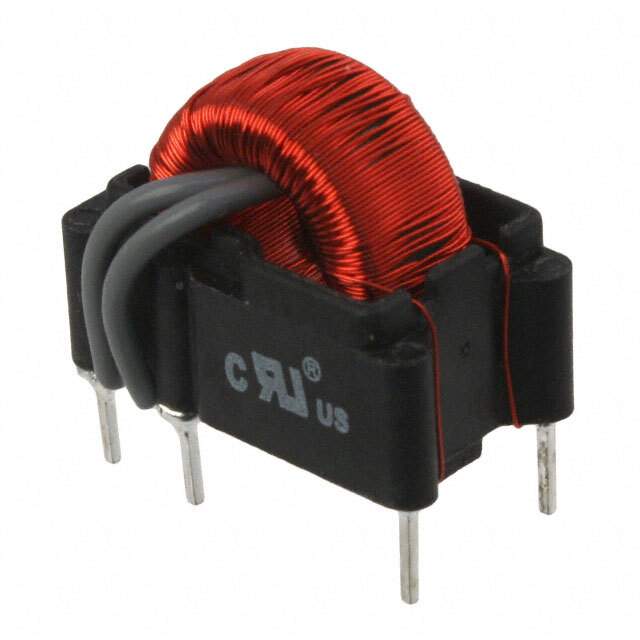

P0581NL Real Image
Same model may have multiple batches, images only for reference.

P0581NL

Part No P0581NL
Manufacturer Pulse
Catalog Current Sense Transformers
Description CURR SENSE XFMR 200:1:1 34A T/H / 34 A 200:1:1 Current Sense Transformer 50kHz ~ 500kHz 2.8Ohm Primary, 1.7mOhm Secondary 76 mH Through Hole
Datasheet
P0581NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Manufacturer Pulse Electronics
Packaging Tray
Frequency Range 50kHz ~ 500kHz
Type Invasive
Current Rating (Amps) 34 A
Inductance 76 mH
DC Resistance (DCR) 2.8Ohm Primary, 1.7mOhm Secondary
Mounting Through Hole
Size / Dimension 0.810" L x 0.580" W (20.57mm x 14.73mm)
Height - Seated (Max) 0.750" (19.05mm)
Termination Style PC Pin
Weight 0.011 lb (4.99 g)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 553-1650-5,P0581NL-ND
Standard Package 80
Win Source Part Number 1330283-P0581NL
Ultra Librarian 3D Model Ultra Librarian P0581NL CAD Model

Description

The Pulse Electronics 1330283-P0581NL is a current sense transformer designed for use in electronic circuits.

  • Manufacturer: Pulse Electronics
  • Transformer Type: Current Sense
  • Mounting Type: Through Hole
  • Frequency Range: 50kHz to 500kHz
  • DC Resistance (Primary): 2.8Ohm
  • DC Resistance (Secondary): 1.7mOhm
  • Current Rating: 34Amps
  • Weight: 0.011 lb (4.99 g)
  • Size: 0.810" L x 0.580" W (20.57mm x 14.73mm)
  • Standard Package: 80
  • RoHS Compliant: Yes
