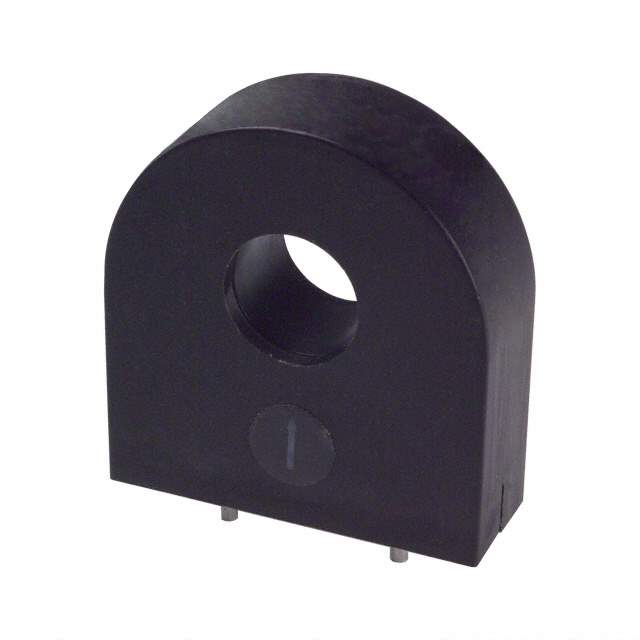

CST206-1A Real Image
Same model may have multiple batches, images only for reference.

CST206-1A

Part No CST206-1A
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description CURR SENSE XFMR 110A T/H  /  110 A Current Sense Transformer 20kHz ~ 200kHz 580mOhm Max 14 mH Through Hole
Datasheet
CST206-1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Series CST
Package Bulk
Frequency Range 20kHz ~ 200kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 110 A
Inductance 14 mH
ET (Volt-Time) 2000VµS
DC Resistance (DCR) 580mOhm Max
Mounting Type Through Hole
Dimension 1.075" L x 0.400" W (27.31mm x 10.16mm)
Height - Seated (Max) 1.225" (31.12mm)
Termination Style PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names CST2061A,237-1096,237-1096-NDR
Standard Package 1
Win Source Part Number 977335-CST206-1A
Ultra Librarian 3D Model Ultra Librarian CST206-1A CAD Model

Description

The Triad Magnetics CST206-1A is a current sense transformer from Triad Magnetics.

  • Inductance: 14mH
  • DC Resistance: 580mOhm
  • Package Type: Through-Hole
