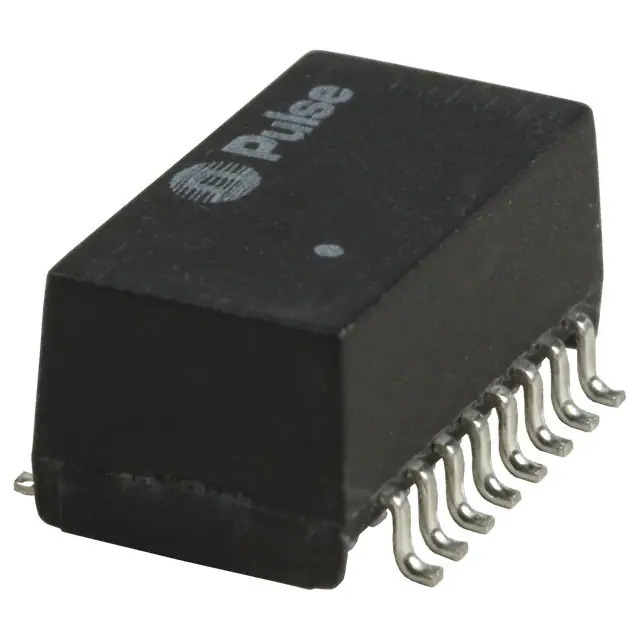

HX1188 Pulse
Same model may have multiple batches, images only for reference.

HX1188

Part No HX1188
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFRMR SGL ETHR LAN 16SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse Electronics
Series -
Package Bulk
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance -
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.03 oz (0.85 g)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1378604-HX1188
Ultra Librarian 3D Model Ultra Librarian HX1188 CAD Model

Description

The HX1188 is a pulse transformer used in various applications, including data interface and isolation. Manufactured by Pulse Electronics, this transformer is designed for surface mount mounting.

  • Application: Data Interface, Isolation
  • Mounting Type: Surface Mount
  • Packaging: Bulk
  • Size / Dimension: 0.500" L x 0.280" W (12.70mm x 7.11mm)
  • Height - Seated (Max): 0.245" (6.22mm)
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
