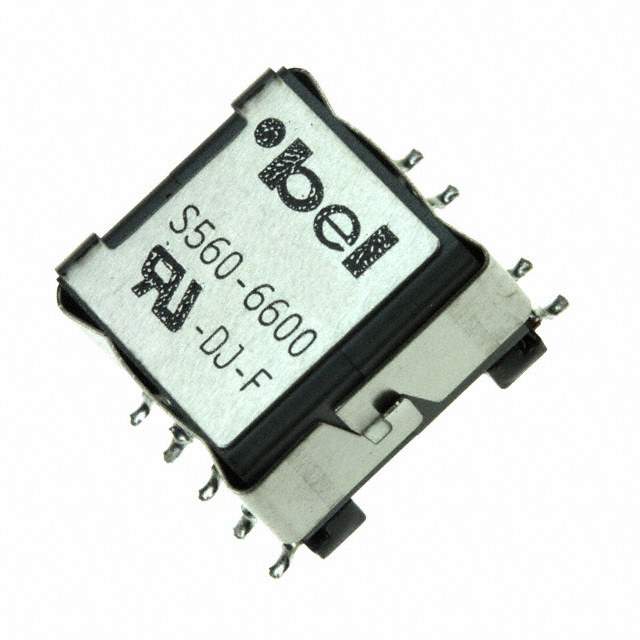

S560-6600-DJ Real Image
Same model may have multiple batches, images only for reference.

S560-6600-DJ

Part No S560-6600-DJ
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description SHDSL, HDSL2 & HDSL4 Magnetics GlobespanVirata G2237
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Fuse Inc.
Win Source Part Number 1245489-S560-6600-DJ
Manufacturer Homepage www.belfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S560-6600-DJ CAD Model

Description

The S560-6600-DJ is an electronic component manufactured by Bel Fuse Inc.

  • Description: Surface Mount Transformer
  • Application: Telecommunications, Data Communications, Power Supplies
  • Turns Ratio: 1:1
  • Maximum Operating Frequency: 100kHz
  • Height: 4.7mm
  • RoHS Compliant: Yes
  • Manufacturer's Homepage: www.belfuse.com
