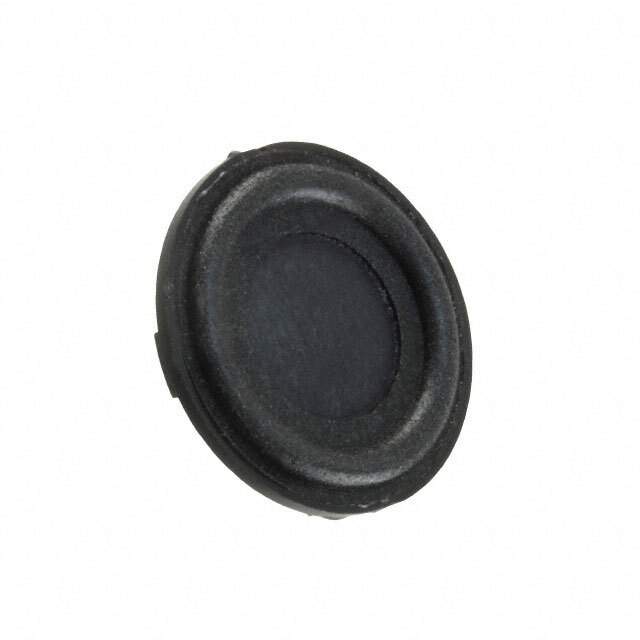

AS02804PR-N50-R Real Image
Same model may have multiple batches, images only for reference.

AS02804PR-N50-R

Part No AS02804PR-N50-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 3W 4 OHM 76DB 350HZ / 4 Ohms General Purpose Speaker 3 W 250 Hz ~ 20 kHz Top Round
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr PUI Audio, Inc.
Series N50 Mini Speaker
Package Tray
Technology Magnetic
Type General Purpose
Frequency Range 250 Hz ~ 20 kHz
Frequency - Self Resonant 350Hz
Impedance 4 Ohms
Efficiency - dBA 76.50
Efficiency - Testing 3W/1M
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 3 W
Power - Max 4 W
Port Location Top
Shape Round
Material - Cone Paper
Material - Magnet Nd-Fe-B
Termination Solder Pads
Dimension 1.102" Dia (28.00mm)
Height - Seated (Max) 0.295" (7.50mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8518.29.8000
Other Names 668-1591
Standard Package 50
Win Source Part Number 1081439-AS02804PR-N50-R
Ultra Librarian 3D Model Ultra Librarian AS02804PR-N50-R CAD Model

Description

The N50 Mini Speaker AS02804PR-N50-R is a general-purpose speaker with a round shape and solder pads termination.

  • Height: 0.295" (7.50mm)
  • Dimension: 1.102" Dia (28.00mm)
  • Impedance: 4 Ohms
  • Frequency Range: 250 Hz ~ 20 kHz
  • Suitable for: Audio products that require a mini speaker
