Same model may have multiple batches, images only for reference.

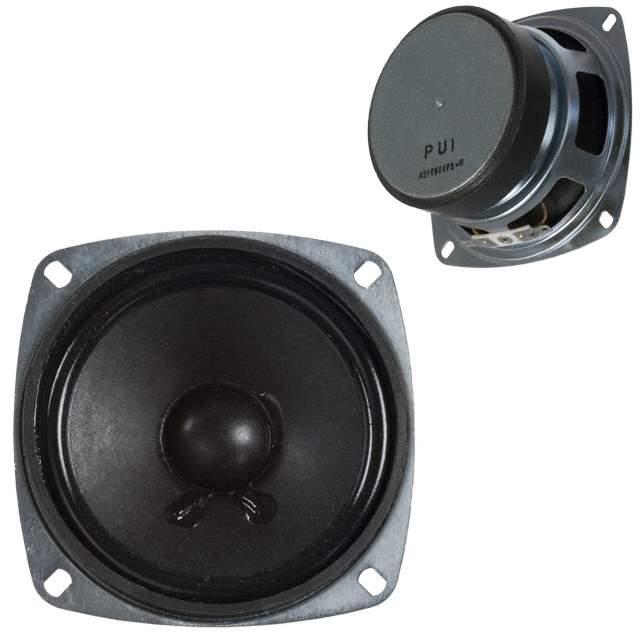

AS10004PS-WR-R Real Image
Same model may have multiple batches, images only for reference.

AS10004PS-WR-R

Part No AS10004PS-WR-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 4OHM 20W TOP PORT 86DB / Speakers Ferrite 90±20%Hz 30W 86±3dBA 4Ohm Square
Datasheet
AS10004PS-WR-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Series AS
Packaging Bulk
Part Status Obsolete(EOL)
Type Magnetic
Frequency Range 90Hz ~ 10kHz
Impedance 4 Ohm
Sound Pressure Level (SPL) 86dB
Power - Rated 20W
Power - Max 30W
Port Location Top
Shape Round, Square Frame
Material - Cone Paper (Water Resistant)
Material - Magnet Ferrite
Termination Solder Eyelet(s)
Dimension 4.134" L x 4.134" W (105.00mm x 105.00mm)
Height - Seated (Maximum) 2.323" (59.00mm)
Win Source Part Number 768785-AS10004PS-WR-R
Popularity Medium
Supply and Demand Status Limited
Family Name AS10004PS-WR-R
Introduction Date September 25, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AS10004PS-WR-R CAD Model

Description

The AS10004PS-WR-R is a magnetic audio product manufactured by PUI Audio, Inc.

  • Impedance: 4 Ohm
  • Maximum Power: 30W
  • Material: Water-resistant paper cone, ferrite magnet
  • Sound Pressure Level (SPL): 86dB
  • Shape: Round or Square with Square Frame
