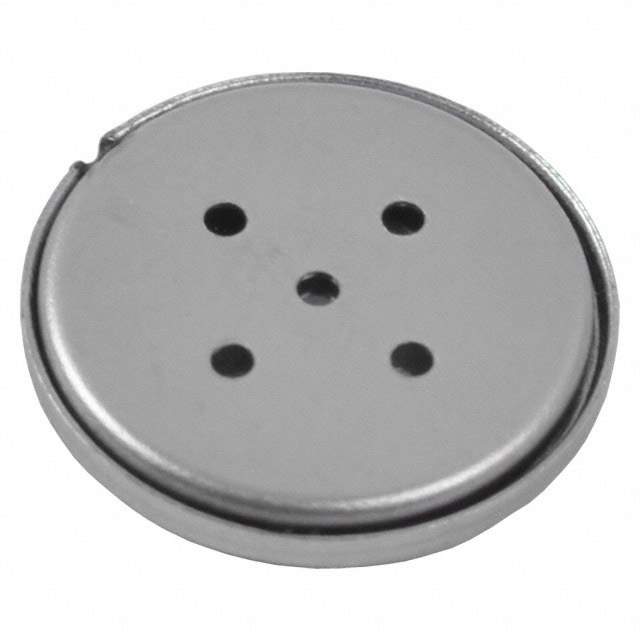

CDM-12008 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr CUI Devices
Series CDM
Package Tray
Technology Magnetic
Type General Purpose
Frequency Range 800 Hz ~ 20 kHz
Frequency - Self Resonant 1000Hz
Impedance 8 Ohms
Efficiency - dBA 90.00
Efficiency - Testing 500mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 500 mW
Power - Max 600 mW
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Termination Solder Pads
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Other Names CDM12008,102-2494
Standard Package 100
Win Source Part Number 1050940-CDM-12008
Ultra Librarian 3D Model Ultra Librarian CDM-12008 CAD Model

Description

The CDM series general purpose speaker from CUI Devices is a round-shaped speaker with a diameter of 0.472" (12.00mm).

  • Diameter: 0.472" (12.00mm)
  • Termination: Solder Pads
  • Impedance: 8 Ohms
  • Maximum Power: 600 mW
  • Rated Power: 500 mW
  • Frequency Range: 800 Hz and 20 kHz
  • Self-Resonant Frequency: 1000Hz
  • Efficiency: 90.00 dBA @ 500mW/100mm
  • Height: 0.118" (3.00mm)
